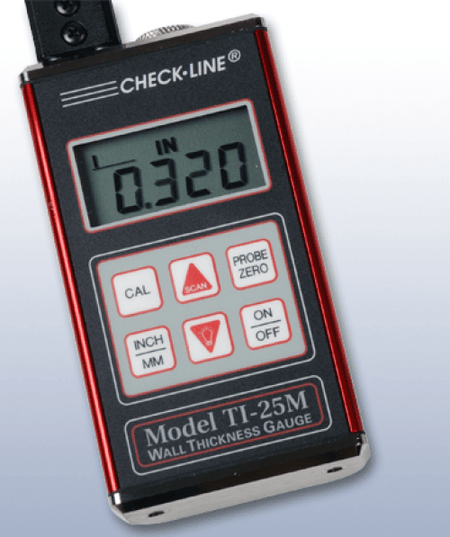

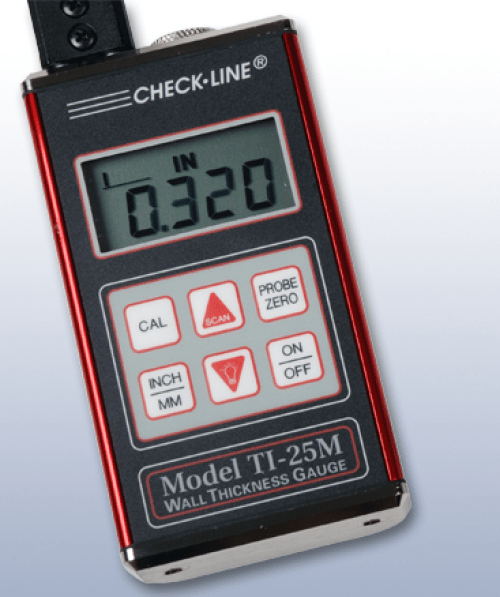

TI-25M-WOP Ultrasonic Thickness Gauge (No probe)
Unfortunately, the TI-25M-WOP has been discontinued and has been replaced by the TI-25MX.
The Check-Line TI-25M Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
Unfortunately, the TI-25M-WOP has been discontinued and has been replaced by the
TI-25MX.
Please Note: Couplant gel required for use, not included, available for separate purchase and can be found
here.
The Check-Line TI-25M Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
The TI-25M can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.
Features:
- Includes NIST Calibration Certificate
- Resolution of 0.001 inch (0.01 mm)
- Large, back-lit LCD display retains last reading
- Simple operator controls virtually eliminate training
- Special-purpose probes are offered for a variety of applications
- Switch-selected units for inches or mm
- For underwater surveying, probe cable lengths up to 50 feet are optionally
- CE Certified
- Made in the USA
- IP65 Rated
Specifications
- Range in Steel: 0.025-6.00" (0.60-150.0 mm)
- Resolution: 0.001" (0.01 mm)
- Display: 4.5 - Digit, 0.5" Back-lit LCD
- Velocity Range: 0.0492 to .3937 in/us. 1250 to 10,000 meters/sec
- Probe: Not included
- Cable: 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
- Temp. Limits (Ambient): 25 to 125 F (-5 to 50 C)
- Temp. Limits (Material): -15 to 140 F (-10 to 60 C)
- Calibration Plate: 0.250" (6.35mm) steel plate, built into the front of the housing
- Battery Type: 1x AA battery
- Battery Life: 200 hours
- Weight Gauge: 7 ounces (200 g)
- Size: 5.2" x 2.7" x 1.1" (131 x 68 x 29 mm)
- Accessories Included: 2 Ounce bottle of couplant
