Home > TM-100 Class II Sound Level Meter Calibrator
Tenmars

TM-100 Class II Sound Level Meter Calibrator

ORDER ME IN
Product code: IC-TM-100

Backorder Now, once ordered your item will dispatch before the 02nd of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

Class 2 Dual Level Calibrator; Setting standard sound level at 94dB and 114dB

Read more

$299.10 AUD + GST
 $329.01 AUD Inc. GST

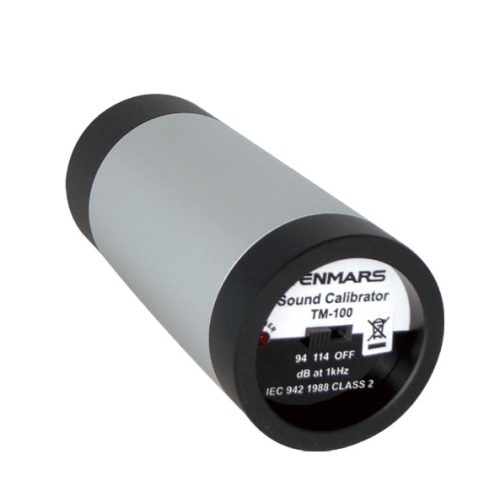

The Tenmars TM-100 Sound Level Meter Calibrator is a hand-held device that emits an audible tone of very accurate level and frequency. Before making sound level measurements the Calibrator is fitted over the meter's microphone and the reading is either checked manually by the user or automatically by the meter.

Checking a meter's calibration is good practice and for many applications it is essential. Most regulations demand that the meter is verified before making measurements. Records should be kept of this as evidence that the correct procedures have been followed.
A Calibrator should meet the standard IEC 60942 to either Class 1 or Class 2. The Class 1 calibrator is a little more accurate than the Class 2. In general, if you have a Class 1 (or Type 1) Sound Level Meter then you should use a Class 1 Calibrator. If you have a Class 2 Sound Level Meter you can use either a Class 2 or Class 1 Calibrator.
The Tenmars TM-100 is a Class 2 Sound Level Meter Calibrator for calibrating sound level meters at 94dB & 114dB & come with a 1/2 inch microphone adapter.
Features:
- According Standard ANSI S1 4-1984 and IEC 942 1988 Class 2
- Sound levels of 94dB & 114dB
- Battery operated with a Low battery indicator

Specifications

- Output Frequency: 1000Hz +/- 4%
- Accuracy: +/- 0.5dB
- Environmental Temperature: 20 C
- Relative Humidity: 65%
- Atmospheric Pressure: 1013 mbar
- Dimensions: 125mm (L) x 48mm (Dia)
- Weight: approx. 285g (including batteries)
