TM-190 Multi-Field EMF Meter - IC-TM-190
$263.67 AUD Inc. GST
|
The Tenmars TM-190 is a three axis magnetic field measuring device (Gauss Meter), with 3-channel internal measurement sensors(X,Y and Z) which enhance reliable measurements and monitoring of low frequency Electromagnetic Field strength, an Electric Field Meter, used for measuring low frequency electric fields and a RF Field Strength Meter, operating at frequencies from 50Mhz to 3.5 Ghz making it suitable as a microwave leakage detector as well as for other RF emitting equipment. This meter indicates the level of electromagnetic pollution generated by appliances, power lines and industrial machinery.

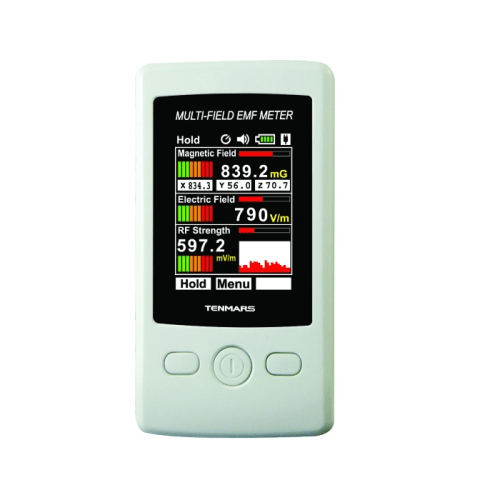

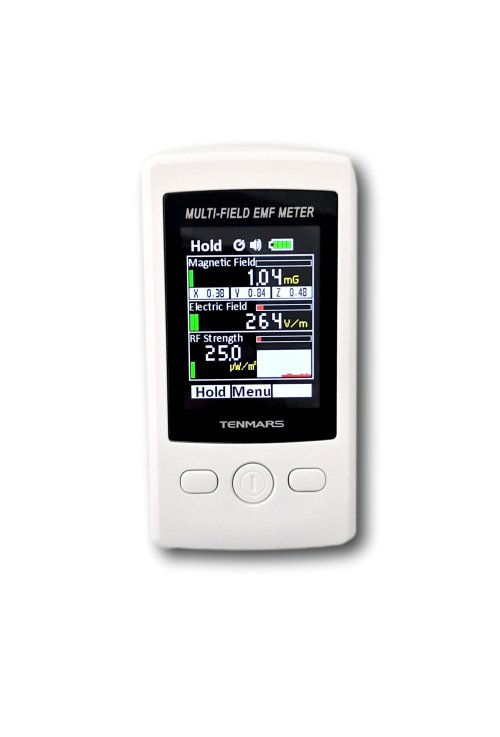

An easy to read full colour TFT display presents the information to the user in a clear way, with all three readings (RF field strength,
electric field and magnetic field) shown at the same time making the TM-190 a very easy to use instrument. The data hold function allows
the user to freeze the display at any time.
Features:
- Three measurements in one meter - Electromagnetic field, electric field and RF field strength.
- For triple axis measurements of low frequency electromagnetic fields, as well as electric and RF fields.
- Quick and easy measurement with three-channel measurement sensors
- Colour TFT display for measurement of all three fields simultaneously.
- Data hold (HOLD) function
- Auto ranging
- Easy & safe to use
- Battery life indicator
SpecificationsElectromagnetic Field:

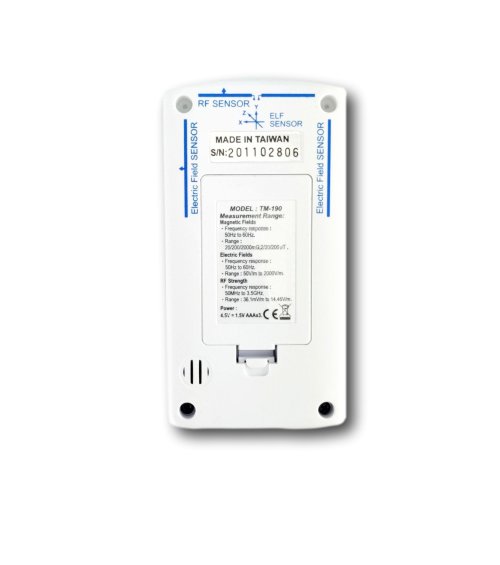

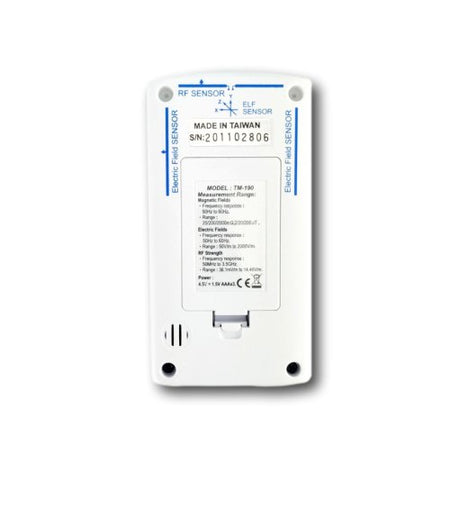

- Sensor Type: Low Frequency/Magnetic Fields/Triple Axis (X, Y, Z)
- Measurement Range: 50V/m to 2000V/m
- Resolution: 0.01/0.1/1 mG. or 0.01/0.1/1 uT
- Frequency: 50/60Hz
- Accuracy: +/- (15% + 100 dgt)
Electric Field:
- Sensor Type: LF Electrical Fields
- Measurement Range: 50V/m to 2000V/m
- Resolution: 1V/m
- Frequency: 50/60Hz
- Accuracy: +/- (7% +/- 50 dgt)
General:
- Display: 4-digit, 2.4 inches color TFT LCD
- Operating Temperature/Humidity: 5 C to 40 C; below 80% R.H.
- Storage Temperature/Humidity: -10 C to 60 C; below 70% R.H.
- Power Supply: 3x 1.5V type AAA Alkaline Batteries
- Battery Life: approx. 8 hours
- Dimensions: 115mm (L) x 60mm (W) x 21mm (D)
- Weight: 120g approx.

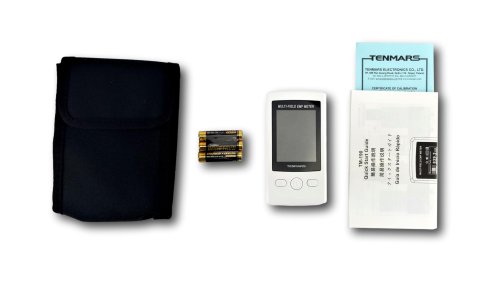

Video: Unboxing the TM-190 Multi-Field EMF Meter |
