TM-192D 3-Axis EMF Meter with Data logger
The TM-192D 3-Axis EMF meter appropriate for measuring electromagnetic fields of extremely low frequency (ELF) of 30Hz to 2000Hz. Capable of measuring the electromagnetic field radiation intensity produced from electric transmission equipment, power lines etc. With USB connection for data logging.
Regular price
$399.40 AUD
+ GST
$439.34 AUD Inc. GST
$439.34 AUD Inc. GST

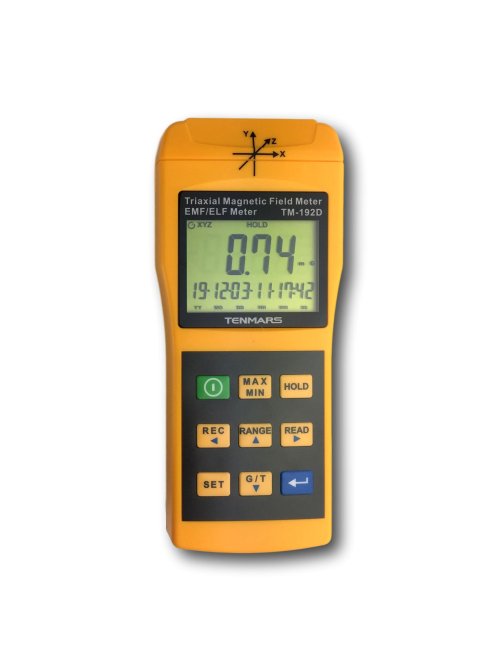

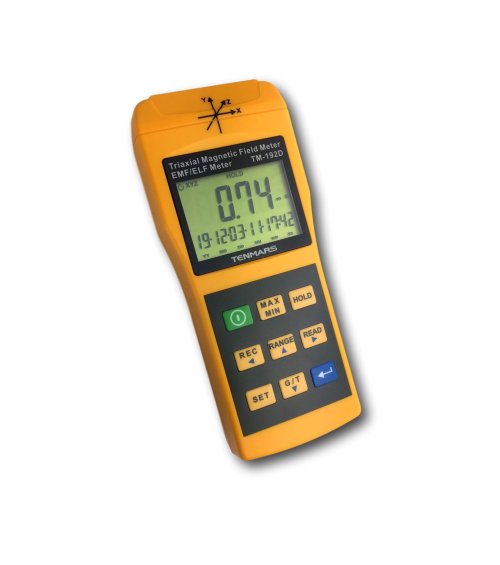

The Tenmars TM-192D is a three axis magnetic field measuring instrument with 3-channel internal measurement sensors (X,Y and Z) that ensure reliable measurements and monitoring of low frequency Electromagnetic Field strength. They have a frequency range of 30 Hz to 2,000 Hz.
Features:
- 30 Hz to 2,000 Hz Frequency range
- For triple axis measurements of low frequency electromagnetic fields
- Quick and easy measurement with three-channel measurement sensors

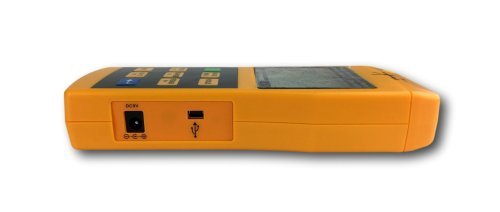

- Built-in USB communication for data-logging. Capacity of 500 data sets or 9999 data sets
- Magnetic field unit is Tesla (T) or Gauss(G)
- Data hold (HOLD), maximum hold (MAX), and minimum hold (MIN) functions
- Auto range or manual range select mode
- Easy & safe to use
- Low battery detector
- Over load indication
- Auto power off function
Specifications
- Display: 4-digit, Triple Liquid Crystal Display
- Measuring Range: 20mG, 200mG, 2000mG, 2uT, 20uT, 200uT
- Resolution: 0.01mG, 0.1mG, 1mG, or 0.001 uT, 0.01 uT, 0.1 uT
- Frequency Response: 30 Hz to 2000 Hz
- Sensor: Triple Axis (X, Y, Z)
- Accuracy (20mG/2uT): +/- (3.0% + 30 dgt) at 50/60Hz; +/- (2.5% + 5dgt) at 50/60Hz; +/- (5.0% + 5dgt) at 30/2000 Hz
- Sample Rate: 2.5 times/second
- Overload (LCD): OL displayed
- Power Supply: Battery 9 volt, NEDA 1604, IEC 6F22, or JIS 006P
- Battery Life: 100 hours Approx.
- Operating Temperature/Humidity: 5 C to 40 C, Humidity below 80% R.H.
- Storage Temperature/Humidity: -10 C to 60 C, Humidity below 70% R.H.
- Dimensions: 173mm (L) x 80mm (W) x 32mm (D)
