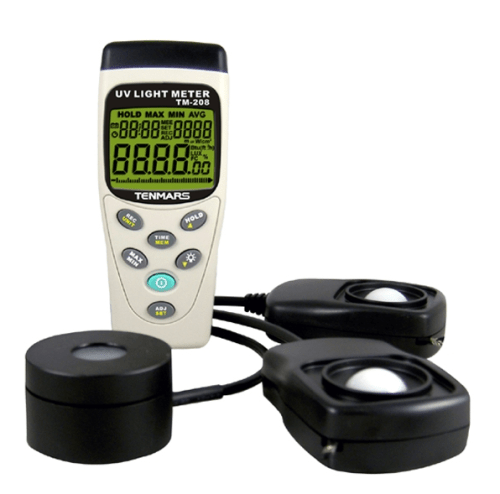

TM-208 Solar, UVA and Light Meter
Backorder Now, once ordered your item will dispatch before the 02nd of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
Light meter and data logger that can measure solar power, UV and illumination. With real time clock with calendar. Conforms to JISC 1609:1993 and CNS 5119 general A class specifications.
Regular price
$899.40 AUD
+ GST
$989.34 AUD Inc. GST
$989.34 AUD Inc. GST
Features:
- UVA measurement: Highly reliable reading instrument designed expressly for measuring light intensity at the wafer plane of mask aligners. UV curing light sources, and any other UV light source
- Solar power feature: Accuracy +/- 3% at 1000 Watts per square meter. Just point the calibrated PV cell at the sun and read the irradiance
- Made according to JISC 1609: 1993 and CNS 5119 general A class specification
- Spectral response close to CIE luminous spectral efficiency
- Measure intensities of illumination in Lux or Foot-candle
- Uses Silicon photodiode and filter. Cosine angular corrected
- With 3 years warranty
Specifications
UVA:
- Range: 40.0uW, 400uW, 4000uW, 20mW
- Resolution: 0.01uW, 0.1uW, 1uW, 0.01mW
- Accuracy: +/- 4% of reading
- Wavelength: 320 nm to 400 nm
Solar Power:
- Range: 40/400 micro Watts per sq meter and 20 watts per sq meter; 13, 127, 634 Btu hour/square foot
- Resolution (Watts per sq meter): 0.01/0.1/1
- Resolution (Btu hour/square foot): 0.01/0.1/1
- Accuracy: +/- 5% of reading
- Wavelength: 400 nm to 1100 nm
Illumination measurement:
- Range (Lux): 40, 400, 4,000, 40,000, 400,000
- Range (Fc): 40, 400, 4,000, 40,000
- Resolution (Lux): 0.01, 0.1, 1, 10, 100
- Resolution (Foot-candle): 0.01, 0.1, 1, 10
- Accuracy: +/- 3% (Calibrated to standard incandescent lamp 2856 K)
- Wavelength: 400 nm to 1100 nm
