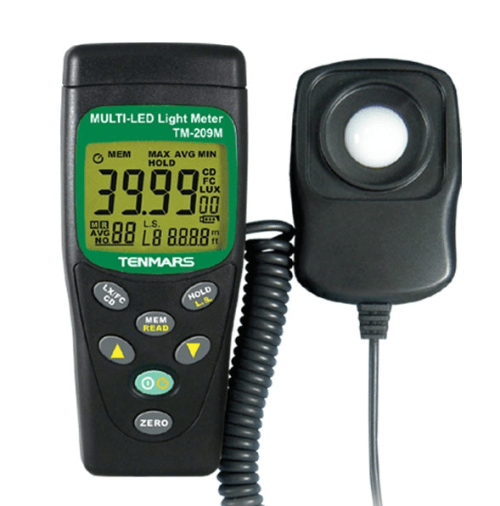

TM-209M LUX/FC Multi-LED Light Meter

ORDER ME IN
Product code: IC-TM-209M

Backorder Now, once ordered your item will dispatch before the 29th of April 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

Dual light meter that can measure Lux/FC and LED light sources. Has user selectable LED light sources for various colour LED sources and is fully auto ranging, adjusting the range automatically to the light source being measured.Conforms to JISC 1609:1993 and CNS 5119 general A class specifications.

Read more

$399.20 AUD + GST
 $439.12 AUD Inc. GST

Dual light meter that can measure Lux/FC and LED light sources. Has user selectable LED light sources for various colour LED sources and is fully auto ranging, adjusting the range automatically to the light source being measured.Conforms to JISC 1609:1993 and CNS 5119 general A class specifications.

Features:
- Conforms to JISC 1609:1993 and CNS 5119 general A class specifications
- Spectral response close to CIE luminous spectral efficiency
- Measures intensities of illumination in units of LUX or Foot-Candles
- Corrected LED day white light spectrum
- Measures lights source includes all visible range
- Cosine angular corrected
- 99 records storage
- Length of wire for light source approx. 1.5 meters
- Data Hold
- With 3 years warranty

Specifications

- Measuring range (Lux): 40, 400, 4,000, 40,000, 400,000
- Measuring range (Foot-candle): 40, 400, 4,000, 40,000
- Accuracy: +/- 3% (calibrated to standard incandescent lamp 2856 K) and corrected LED day white-light spectrum. +/- 6% (other visible light source)
- Light Source Selecting: Tungsten/Daylight, Fluorescent, 0 to 9 select rating
- Sensor dimensions: 80mm (L) x 55mm (W) x 25mm (D)
- Meter dimensions: 130mm (L) x 55mm (W) x 38mm (D)
- Weight (including battery): 250 g
Selectable options:
- L0: Standard light source A
- L1: LED white day ight
- L2: LED red light
- L3: LED amber (yellow) light
- L4: LED green light
- L5: LED blue light
- L6: LED purple light
- L7 to L9: Default standard light source A
