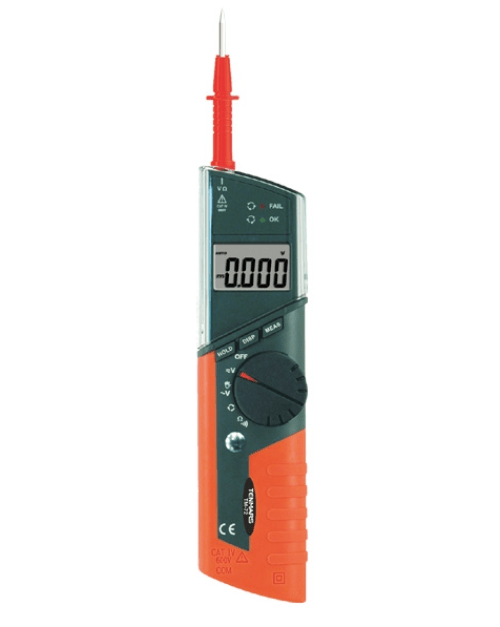

TM-72 Pocket Multimeter + Phase Rotation
Backorder Now, once ordered your item will dispatch before the 09th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
Pocket multimeter and phase rotation meter. AC/DC voltage range of 0 to 600V. CAT IV 600V safety rating.
Regular price
$189.00 AUD
+ GST
$207.90 AUD Inc. GST
$207.90 AUD Inc. GST
Features:
- AC voltage range: 0 to 600V
- DC voltage range: 0 to 600V
- Auto power off (15 minutes)
- Frequency measurement
- AC and Frequency measurement with only one test lead
- Phase sequence test
- Phase conformity test
- Continuity test
- Double injection outer case
- CAT IV 600V safety rating
- LCD display with maximum reading of 6000, plus decimal point
- Analog Bar graph
- Three years warranty
Specifications
- Display: 6000 counts
- Overvoltage Category: CAT IV 600V
- AC Voltage: 1.5V to 600V +/- (1.5% of rdg + 5 dgts)
- DC Voltage: 1.5V to 600V +/- (0.8% of rdg + 1 dgt)
- Resistance: 1 to 1499 ohms +/- (1.0% of rdg + 5 dgts)
- Continuity Buzzer: Yes
- Phase Test: Test voltage 100 to 600 volts
- Frequency: 0.1Hz to 69.9Hz +/- (1.0% of rdg + 2 dgts)
- Autoranging: Yes
- Auto Power Off: Yes
- Data Hold: Yes
- Auto Power Off: Yes
- Dimensions: 200mm (L) x 51mm (W) x 30mm (D)
