Tramex Building Survey Inspection Kit - BSIK
Backorder Now, once ordered your item will dispatch before the 11th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The Tramex Building Survey Inspection Kit provides the instruments and tools needed to conduct a thorough moisture and humidity inspection in various building materials such as drywall, wood, plaster, brick, ceramic tiles, resilient flooring, laminates and roofing and numerous building materials and air spaces.
- Based around the Tramex Moisture Encounter MEX5 moisture meter and includes the necessary accessories to use out of the box.
- Provides Bluetooth connectivity to view, share and store readings.
- Comes in a heavy-duty carrying case with die-cut foam lining.
Regular price
$3,140.90 AUD
+ GST
$3,455.00 AUD Inc. GST
$3,455.00 AUD Inc. GST
The Tramex Building Survey Inspection Kit provides the instruments and tools needed to conduct a thorough moisture and humidity inspection in various building materials such as drywall, wood, plaster, brick, ceramic tiles, resilient flooring, laminates and roofing and numerous building materials and air spaces.
The Moisture Encounter MEX5 moisture meter measures moisture content in wood and drywall and provides comparative readings in a variety of building materials. It also features a built-in hygrometer for ambient conditions and psychrometric values, an Infrared Surface Thermometer and incorporates the external RH probe for in-situ equilibrium RH readings, as well as the hand-held and hammer-action pin probes for wood, drywall, and WME readings. The insulated 200mm pins and narrow 260mm RH probe allow for deep wall cavity and insulation pin probing.
Bluetooth connectivity to the Tramex Meters App allows for visualization of readings, moisture mapping and data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts, as well as see your meter screen on your phone when extending to hard to reach places.
The Tramex Building Survey Inspection Kit comes with an extension handle and a protective heavy-duty carrying case with die-cut foam lining.

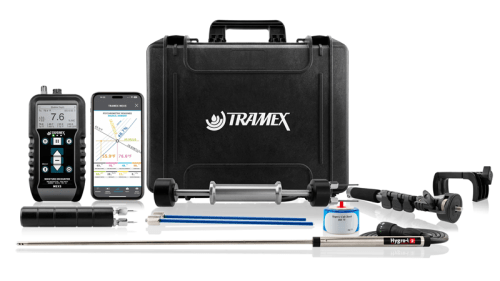

Kit Contents
- Moisture Encounter MEX5 - MEX5
- Heavy-duty pin-type electrode - HH14TP30B
- Hammer-action pin-type electrode - HA21SP52B
- Narrow Wand Relative Humidity Probe - RHP-NWB
- 200mm insulated pins for in-depth penetration using pin probe - SP200
- Calibration Check Salts for Relative Humidity probe - SAL75
- Extension Handle - E5-HBS
- Heavy-duty carrying case with die-cut foam lining - MAXINS
Specifications
Moisture Encounter MEX5:
- Size: 180mm x 85mm x 40mm
- Weight: 290g
- Construction: ABS Body
- Power: 2 x AALR6 ALKALINE (included)
- Display: Digital 58mm x 35mm
- Depth of penetration: Shallow signal: up to 9mm
- Deep signal: up to 30mm
Measuring range of Moisture Encounter MEX5:
- NDT Moisture content for Wood: 0 to 30% MC
- NDT Comparative for Building Materials: 0 to 100
- Pin % MC Wood: 6 to approx 50% MC
- Pin % MC Drywall: 0 to 8.5% MC
- Relative Humidity: 0 to 99% (with optional Hygro-i2 probe): Humidity accuracy: 0% to 99%RH +/- 2% at 25 C
Relative Humidity Sensor specifications:
- Range: 0 to 100%RH
- Accuracy: +/- 1.5%RH Range 0% to 80%RH +/- 2.0%RH Range 80% to 99%RH (at 25 C)
- Resolution: 0.1% over the complete range
- Drift: less than 0.25%RH per year
Temperature Sensor specifications:
- Range: -40 to 125 C
- Accuracy: +/- 0.1 C Range 20 to 60 C
- Sensor Protection: PTFE Film protects sensor opening from water & dust Drift: 0.03 C per year
- Drift: less than 0.03 C per year
Specifications
of Kit:- Size: 42cm x 36cm x 14cm
- Weight: 4.3kg
- Power: 2 x AALR6 ALKALINE
