Tramex Building Survey Master Kit - BSMK

ORDER ME IN
Product code: BSMK

Backorder Now, once ordered your item will dispatch before the 11th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The Tramex Building Survey Master Kit is the ultimate kit for non-destructive testing of moisture content and humidity conditions in drywall, wood, plaster, brick, ceramic tiles, resilient flooring, laminates and roofing and numerous building materials and air spaces.

  • Based around the Tramex Moisture Encounter MEX5 moisture meter and Roof and Wall Scanner RWS and includes the necessary accessories to use out of the box.
  • Provides Bluetooth connectivity to view, share and store readings.
  • Comes in a heavy-duty carrying case with die-cut foam lining.

Read more

$4,872.72 AUD + GST
 $5,360.00 AUD Inc. GST
The Tramex Building Survey Master Kit is the ultimate kit for non-destructive testing of moisture content and humidity conditions in drywall, wood, plaster, brick, ceramic tiles, resilient flooring, laminates and roofing and numerous building materials and air spaces.
The RWS Roof & Wall Scanner allows for instant, non-destructive evaluation of moisture conditions deep within wall and roofing systems.
The Moisture Encounter MEX5 moisture meter measures moisture content in wood and drywall and provides comparative readings in a variety of building materials. It also features a built-in hygrometer for ambient conditions and psychrometric values, an Infrared Surface Thermometer and also incorporates the external RH probe for in-situ equilibrium RH readings, as well as the pin probe for wood, drywall, and WME readings. The insulated 200mm pins and narrow 127mm RH probe allow for deep wall cavity and insulation pin probing.
Bluetooth connectivity to the Tramex Meters App allows for visualization of readings, moisture mapping and data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts, as well as see your meter screen on your phone when extending to hard to reach places.
The Tramex Building Survey Master Kit comes with extension handles and a protective heavy-duty carrying case with die-cut foam lining.

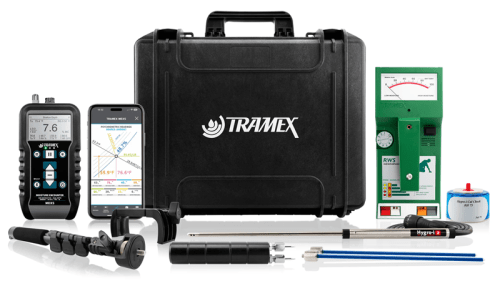

Kit Contents
- Roof and Wall Scanner - RWS
- Moisture Encounter MEX5 - MEX5
- Heavy-duty pin-type electrode - HH14TP30
- 200mm insulated pins for in-depth penetration using pin probe - SP200
- Short narrow Wand Relative Humidity Probe - RHP-SNWB
- Calibration Check Salts for Relative Humidity probe - SAL75
- Extension Handle - E5-HBS
- Heavy-duty carrying case with die-cut foam lining - MAXMASTER

Specifications

Roof and Wall Scanner RWS:
- Size: 125mm x 275mm x 75mm
- Weight: 853g
- Construction: ABS Body
- Power: 9 volt PP3 Battery (included)
- Display: Analog
- Depth of penetration: 100mm
- Four Ranges: Roofing Mode with high and low sensitivity. EIFS / Foam Roof
- Insulation Mode with high and low sensitivity
- Accessories: Leather carry case and Telescopic handle for use on roofs only.
- Limitations: Some EPDM, Butyl rubber roofing and other conductive roofing. Hard - Coat Stucco, wire lath or wire mesh reinforced finishes.
Moisture Encounter MEX5
- Size: 180mm x 85mm x 40mm
- Weight: 500g
- Construction: ABS Body
- Power: 2 x AALR6 ALKALINE (included)
- Display: Digital 58mm x 35mm
- Depth of penetration: Shallow signal: up to 9mm
- Deep signal: up to 30mm
- NDT Moisture content for Wood: 0 to 30% MC
- NDT Comparative for Building Materials: 0 to 100
- Pin % MC Wood: 6 to approx 50% MC
- Pin % MC Drywall: 0 to 8.5% MC
- Relative Humidity: 0 to 99% (with optional Hygro-i2 probe): Humidity accuracy: 0% to 99%RH +/- 2% at 25 C
Relative Humidity Sensor specifications:
- Range: 0 to 100%RH
- Accuracy: +/- 1.5%RH Range 0% to 80%RH +/- 2.0%RH Range 80% to 99%RH (at 25 C)
- Resolution: 0.1% over the complete range
- Drift: less than 0.25%RH per year
Temperature Sensor specifications:
- Range: -40 to 125 C
- Accuracy: +/- 0.1 C Range 20 to 60 C
- Sensor Protection: PTFE Film protects sensor opening from water & dust Drift: 0.03 C per year
- Drift: less than 0.03 C per year

Specifications

of Kit:
- Size: 42cm x 36cm x 14cm
- Weight: 4.3kg
- Power: 2 x AALR6 ALKALINE
