Tramex Water Damage Restoration Master Kit X
Backorder Now, once ordered your item will dispatch before the 11th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The Tramex Water Damage Restoration Master Kit X is the topmost kit including the top of the range digital meters for moisture content and relative humidity testing and monitoring of ambient conditions, concrete, wood, tiles, drywall, plaster and numerous building materials after water damage.
- - Tramex MEX5 for dual-depth, non-invasive moisture meter for common building materials such as wood, bricks and plaster, and the Tramex CMEX5 concrete moisture meter.
- - Both meters have Bluetooth connectivity allows them to connect to the Tramex app for data visualization and moisture mapping.
- - The kit also includes Tramex Hygro-i2 probes for live data logging of ambient temperature and humidity.
Regular price
$5,018.18 AUD
+ GST
$5,520.00 AUD Inc. GST
$5,520.00 AUD Inc. GST
The Tramex Water Damage Restoration Master Kit X is the topmost kit including the top of the range digital meters for moisture content and relative humidity testing and monitoring of ambient conditions, concrete, wood, tiles, drywall, plaster and numerous building materials after water damage.

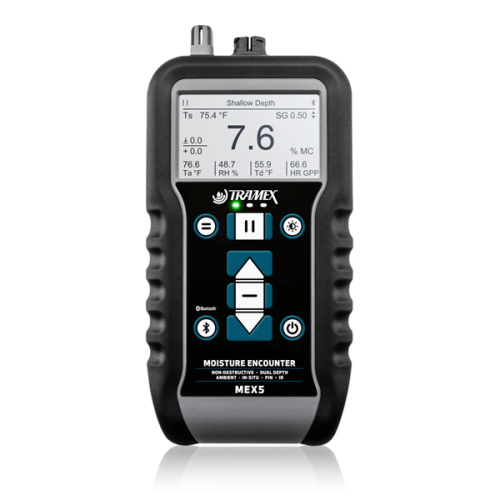

Featuring the multi-functional Tramex MEX5 for dual-depth, non-invasive testing of moisture conditions in drywall, wood, plaster, brick, tiles, masonry, resilient flooring, laminates and roofing. The MEX5 shallow-depth feature allows for measurement up to 9mm and the elimination of substrate influence on readings. The many advanced settings include a Baseline setting allowing for comparatives to the dry standard goal. The MEX5 measures moisture content in wood and the pin-meters measure moisture content in drywall as well as WME comparative readings in various building materials.

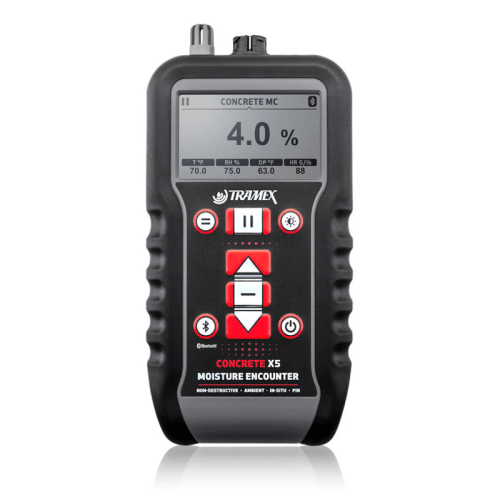

The Tramex CMEX5 digital concrete moisture meter provides instant, non-destructive quantitative moisture content measurement using Gravimetric testing as a baseline. The CMEX5 also incorporates a bayonet plug-in port for reusable Tramex Hygro-i2 RH probes for in-situ testing of concrete.
The meters feature built-in hygrometers for ambient conditions, psychrometric values and enthalpy, a built-in infrared surface thermometer and also incorporate the external in-situ RH probes for in-situ equilibrium RH readings and ambient psychrometrics, temperature, GPP g/kg and dew point conditions. The reusable Hygro-i2 probes can also be used with the Tramex Feedback Datalogger to give live readings and time logs of relative humidity, temperature and dew point in the environment and in materials and air spaces. Built-in hygrometers and Infrared surface thermometers provide psychrometrics, surface temperature, GPP g/kg and dew point conditions.
Bluetooth connectivity to the Tramex Meters App allows for visualization of readings, moisture mapping and data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts, as well as see your meter screen on your phone when extending to hard to reach places. The Tramex Water Damage Restoration Master Kit X comes with an extension handle in a protective heavy-duty carrying case with die-cut foam lining.
Featuring the multi-functional Tramex MEX5 for dual-depth, non-invasive testing of moisture conditions in drywall, wood, plaster, brick, tiles, masonry, resilient flooring, laminates and roofing. The MEX5 shallow-depth feature allows for measurement up to 9mm and the elimination of substrate influence on readings. The many advanced settings include a Baseline setting allowing for comparatives to the dry standard goal. The MEX5 measures moisture content in wood and the pin-meters measure moisture content in drywall as well as WME comparative readings in various building materials.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
MEX5 Features:
- Moisture detection and mapping for a multitude of building materials.
- Instant, non-destructive, material-specific scale ranges/sensitivities.
- Built-in hygrometer and infrared surface thermometer.
- Ambient psychrometric and material moisture values simultaneously displayed.
- Dual-depth comparative of surface and core moisture.
- In-situ RH & Pin Probe connections.
- Quantitative % moisture content in wood and drywall.
- Bluetooth connection to Tramex Meters App for Geo-tagged and time stamped mapping visuals and reports.
CMEX5 Features:
- Bluetooth connection to IOS & Android Tramex App
- Non-Destructive Quantitative %MC
- Built-In Ambient RH Sensor
- In-Situ RH & Pin Probe connections
- 500+ Wood species available
- Optional Extension Bracket with Telescopic Handle
- Non-Destructive Quantitative %MC
- Built-In Ambient RH Sensor
- In-Situ RH & Pin Probe connections
- 500+ Wood species available
- Optional Extension Bracket with Telescopic Handle

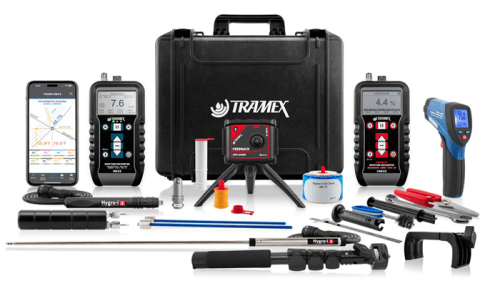

Kit Contents:
1 x Concrete Moisture Encounter X5 - CMEX5.
1 x Moisture Encounter X5 - MEX5.

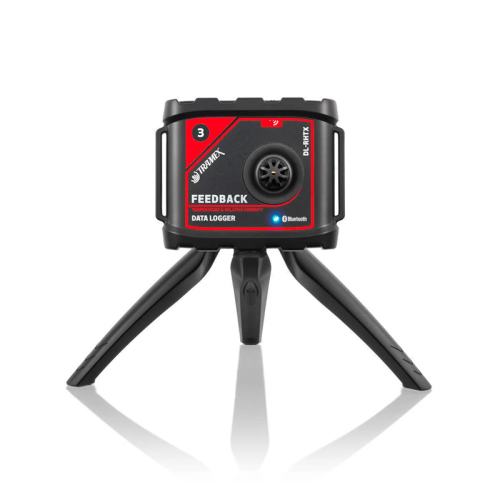

1 x Feedback Datalogger - DL-RHTX.

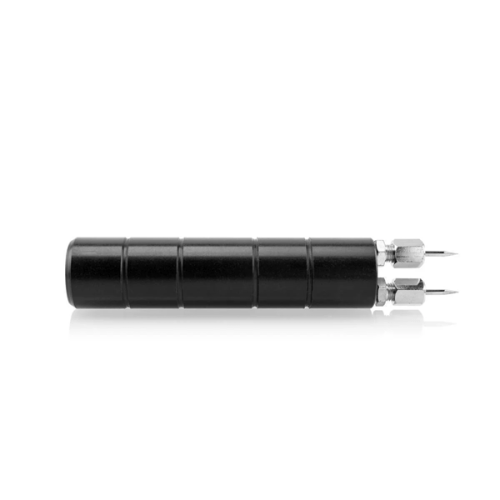

1 x Heavy-duty pin-type wood probe.

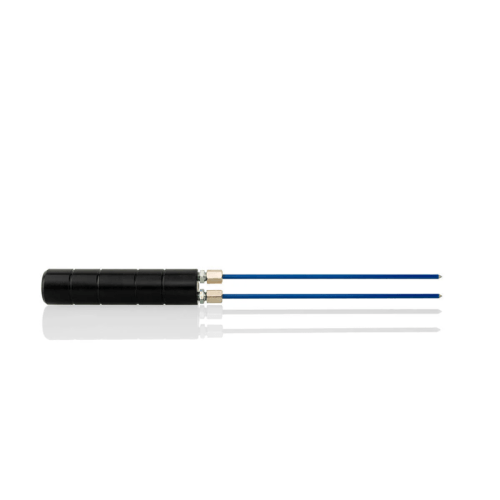

1 x 200mm insulated pins for in-depth penetration - SP200

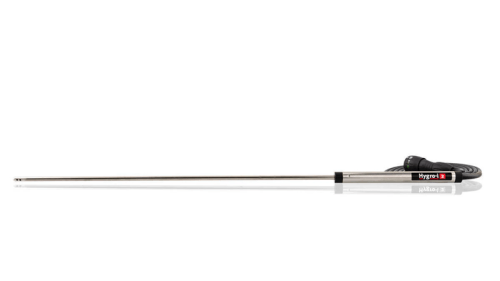

1 x 260mm Narrow Wand Relative Humidity Probe - RHP-NW-B

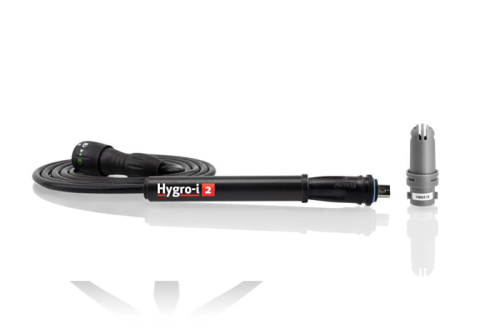

1 x Hygro-i2 Relative Humidity probe - HIPP1
1 x Hygro-i2 Electronic Interface Cable - RHIE2B
1 x Hole liners.
1 x Calibration Check Salts.

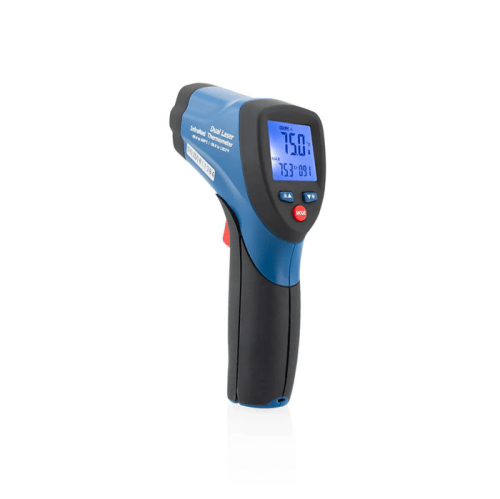

1 x Infrared Thermometer.
1 x Extension Handle.
Specifications

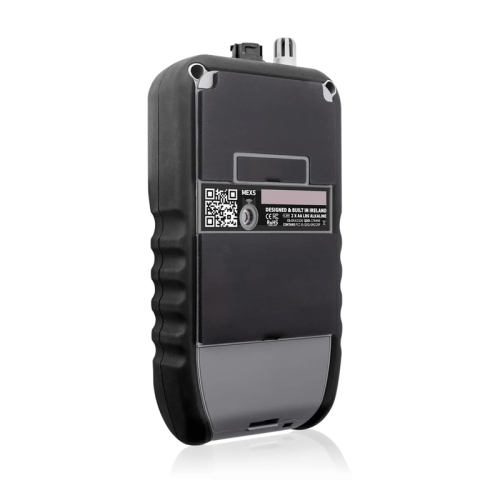

MEX5
- Size: 180mm x 85mm x 40mm
- Weight: 290g oz (10.22)
- Construction: ABS Body
- Power: 2 x AALR6 ALKALINE (included)
- Display: Digital 58mm x 35mm
- Depth of penetration (Shallow): up to 9mm
- Depth of penetration (Deep Signal): up to 30mm

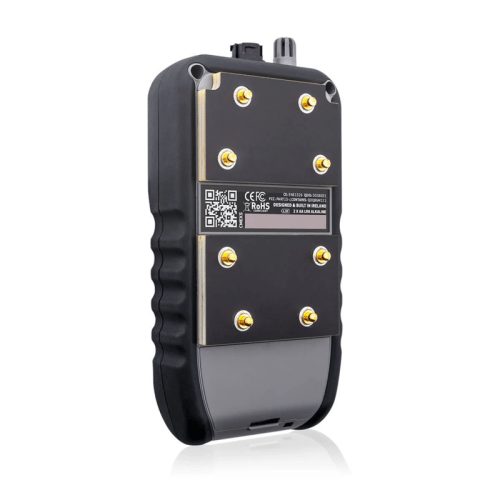

CMEX5
- Moisture content for Concrete: 0 to 6.9 %
- Comparative for Gypsum floor screed: 0 to 12CM
- Equiv Anhydrite/Concrete: 0 to 2.7 / 0 to 4.3
- Reference scale: 0 to 100
- Relative Humidity: 0 to 99%(with optional Hygro-i2 probe)
- Humidity accuracy: 0% to 99%RH, +/- 2% at 25 C/77 F
- Moisture content for wood: 5 to 30 % (with optional wood pin probes)
- Comparative for Gypsum floor screed: 0 to 12CM
- Equiv Anhydrite/Concrete: 0 to 2.7 / 0 to 4.3
- Reference scale: 0 to 100
- Relative Humidity: 0 to 99%(with optional Hygro-i2 probe)
- Humidity accuracy: 0% to 99%RH, +/- 2% at 25 C/77 F
- Moisture content for wood: 5 to 30 % (with optional wood pin probes)
