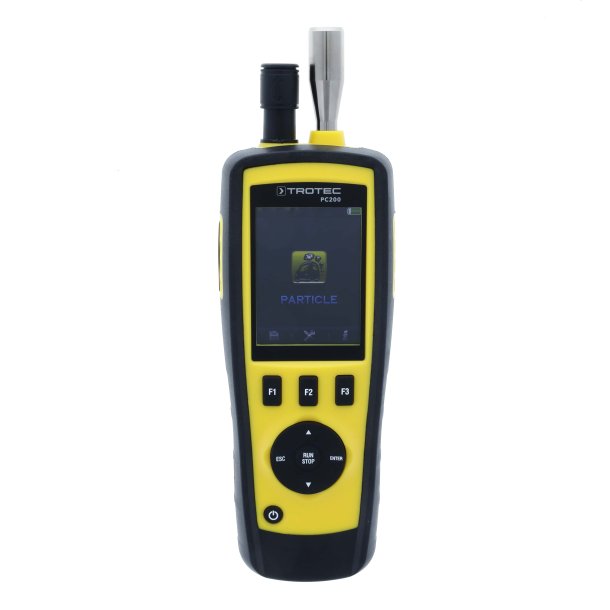

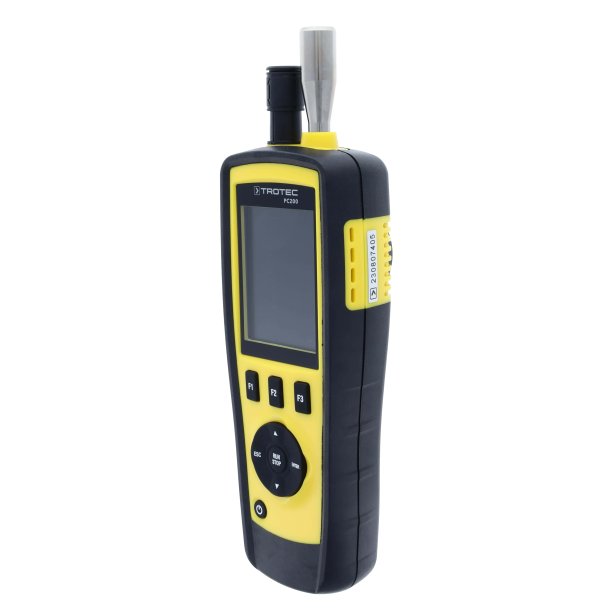

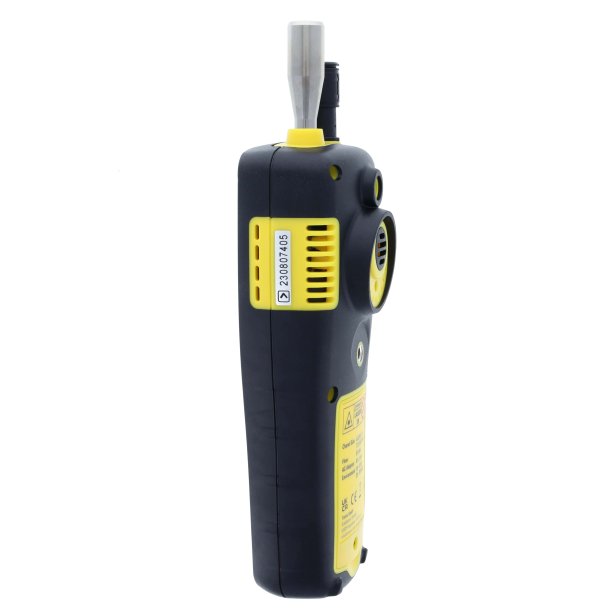

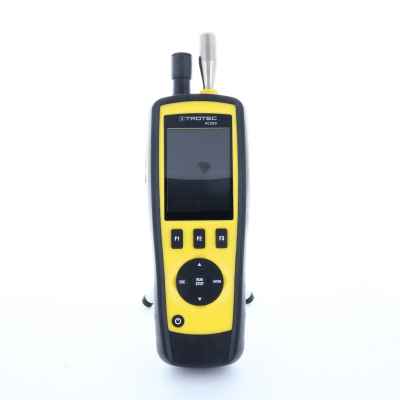

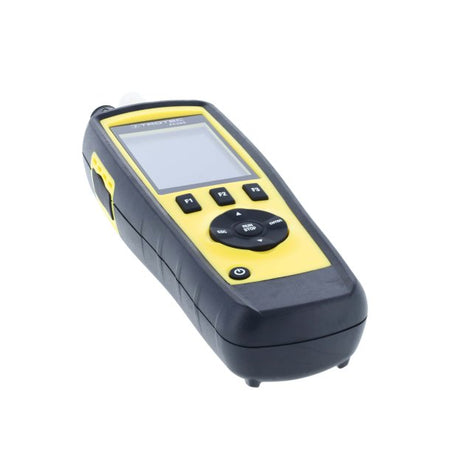

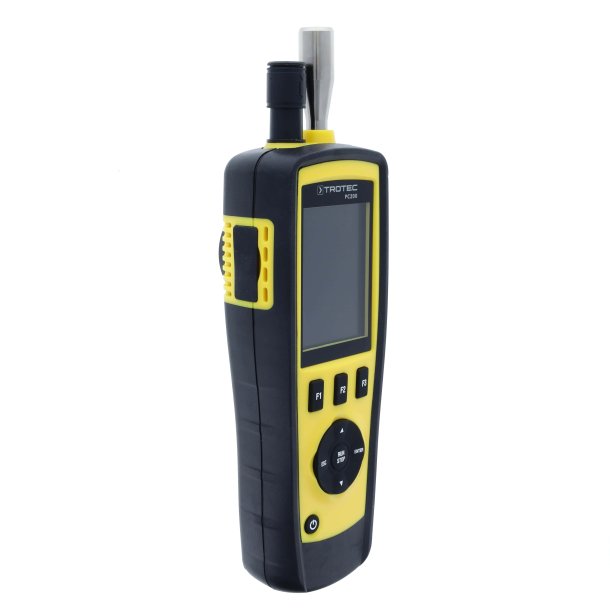

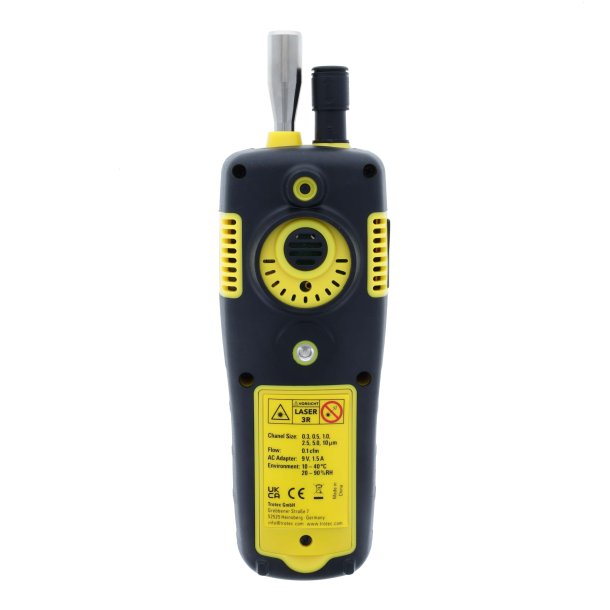

The PC200 is an ergonomic, hand-held measuring device with a built-in photo and video function, which allows the user to monitor air particles and gather environmental data.
With its ISO 21501-4 conformity, the PC200 can be used for various measuring functions from testing clean rooms and filter efficiency to monitoring burdens at workspaces and quality assurance.

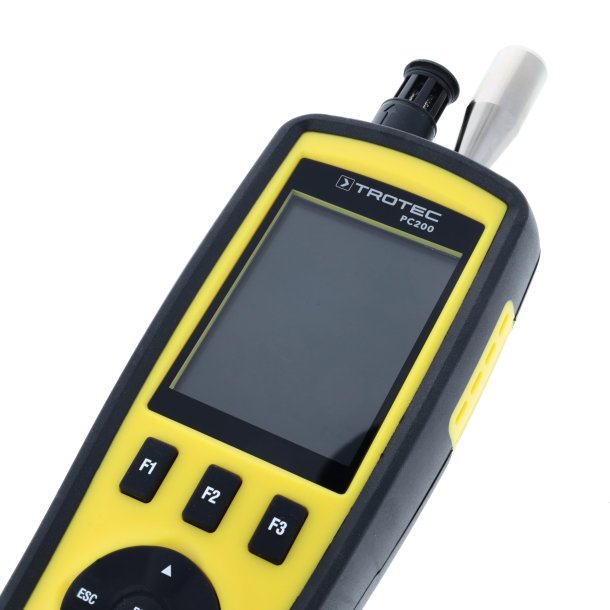

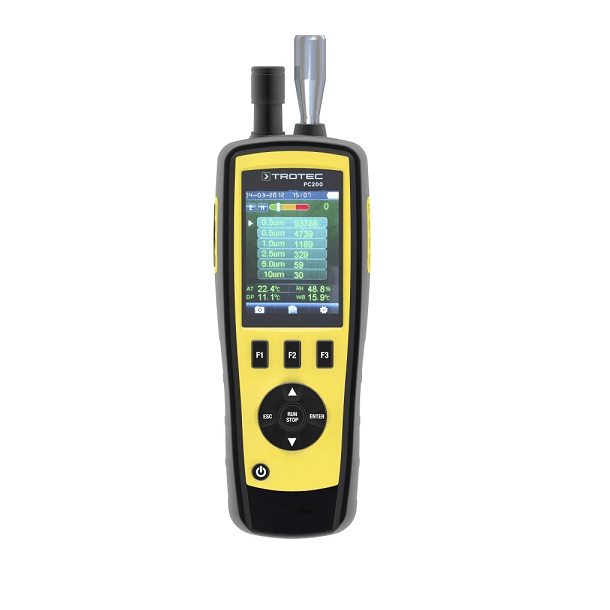

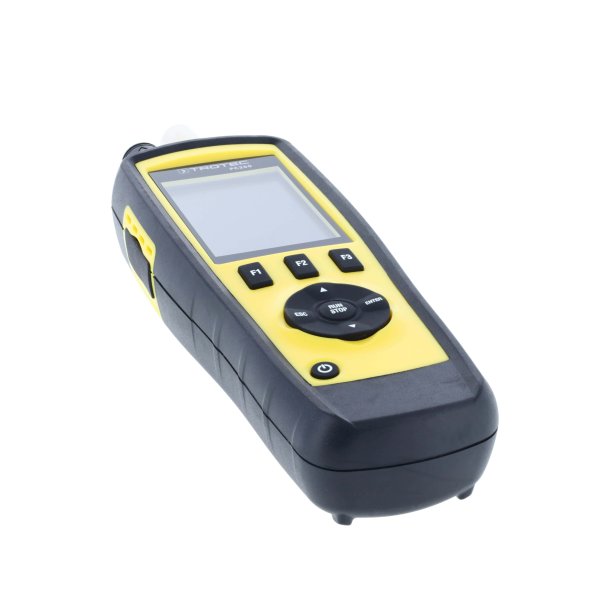

All measured values of the six particle size channels are shown simultaneously on the 2.8-inch color LCD display. An additional color indicator display with an automatic acoustic alarm makes it easier to quickly detect critical particle concentrations.
As well as the size and amount fractions of air particles, the PC200 also detects environmental factors such as air temperature, relative humidity, and dew and wet-bulb temperature.

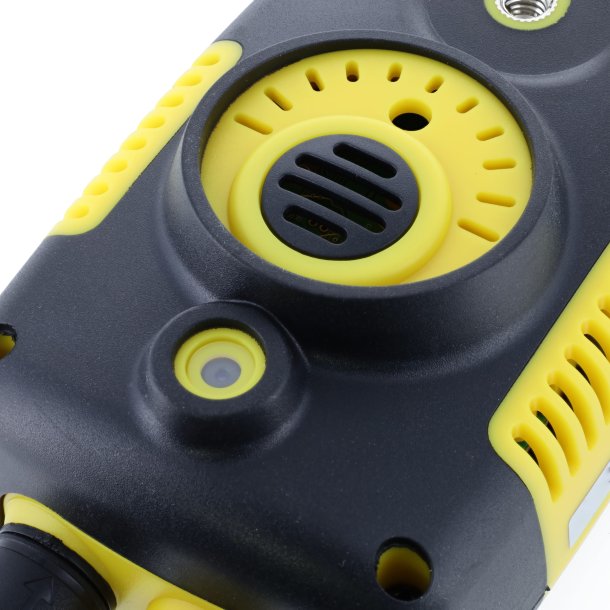

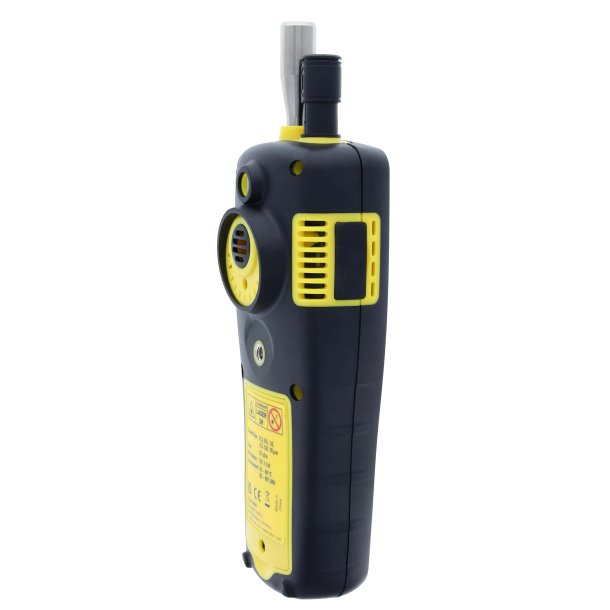

The built-in digital camera then makes it possible to take photos and record videos of the measured environment.

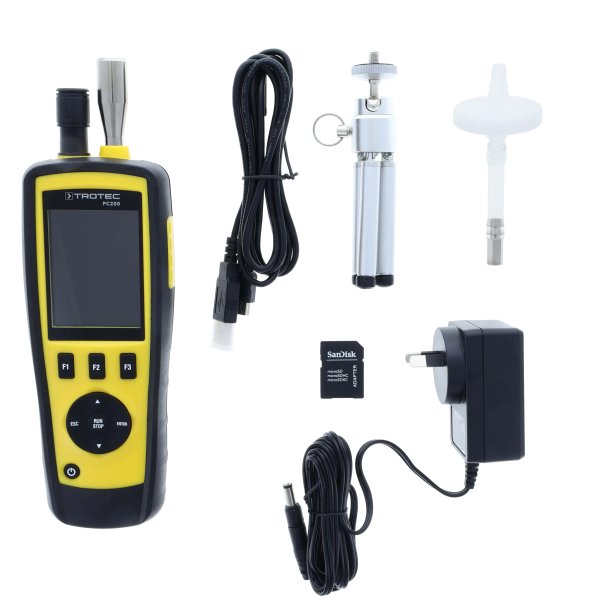

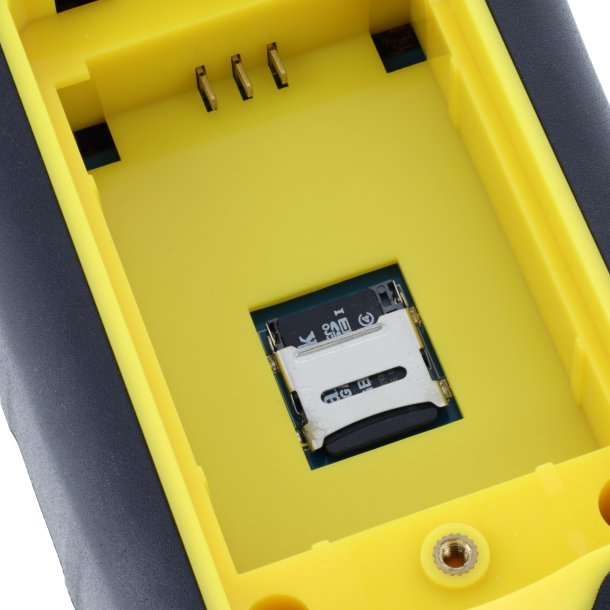

The PC200s data logging function can store up to 5,000 measurement records on its internal memory. This can be expanded by up to 8 GB with a MicroSD card, which significantly raises the memory capacity.
The PC200 is ideal for heating, ventilation and air-conditioning technicians for all their maintenance and testing work at various pump systems. Faulty installations can quickly lead to noticeable air quality problems in connecting rooms. The PC200 allows sources of hazardous contamination to be located, filter efficiency to be determined and particle concentrations in the indoor air to be evaluated.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
Specifications
Particle counter:
- Number of channels: 6
- Channel sizes: 0.3 um, 0.5 um, 1.0 um, 2.5 um, 5.0 um, 10.0 um
- Counting modes: Concentration, cumulative, differential
- Counting efficiency: 50 % at 0.3 um; 100 % for particles greater than 0.45 um
- Flow rate: 2.83 l/m, controlled by internal pump
- Zero count: less than 1 particle /5 min
- Coincidence loss: 5 %, 2 million particles per cubic feet (28.3 liters)
- Detector type: Light-scattering measurement

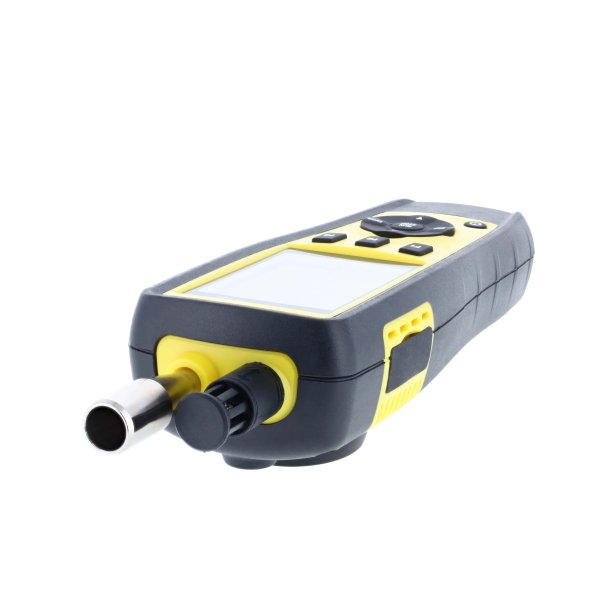

- Sample inlet: Isokinetic probe
Air temperature:
- Measuring range: 0 to 50 C (32 to 122 F)
- Accuracy (+/- 10 to 40 C): +/- 0.5
- Temperature below 10 to Temperature above 40 C: 1
Relative humidity:
- Range: 0 to 100%RH
- Accuracy (40 % - 60 %): +/- 3
- Accuracy (20 % - 40 %): +/- 3.5
- Accuracy (60 % - 80 %): +/- 3.5
- Accuracy (0 % - 20 %): +/- 5
- Accuracy (80 % - 100 %): +/- 5
Dew-point Temperature:
- Measuring range: 0 to 50 C (32 to 122 F)
- Accuracy (10 to 40 C): +/- 0.5 to 1
- Accuracy (50 to 104 F): +/- 0.9 to 1.8
Wet-bulb Temperature:
- Measuring range: 0 to 80 C (32 to 176 F)
- Accuracy: +/- 1 C (1.8 F)
- Display: LCD
- Internal flash memory: Up to 5,000 data records
- Photo storage format: JPEG (640 x 480)
- Video storage format: 3GP (320 x 240)
- Interface: USB and 3.5 headphone jack
- Power supply: Internal battery or AC adapter
- Charging time: Approx. 2 hours with connected AC adapter
