TUF RHVP 208G Green Rotationn Laser (HVG) with mm Receiver
This item has been discontinued, please call 1300 737 871 (NZ 0800 737 871) for an alternative.
This kit includes everything you need, including the 208R Green Rotation laser, a receiver, target plate and carrying case. Features: - H Auto-leveling - Tilt Warning - Manual Mode - Calibration Mode -...

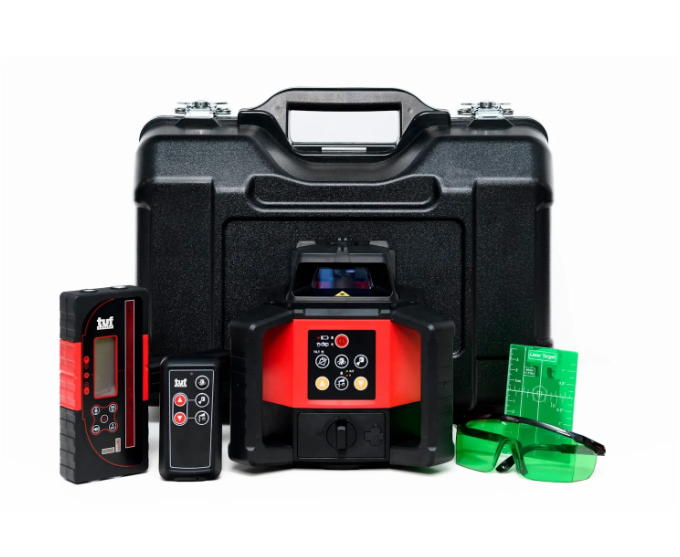

This kit includes everything you need, including the 208R Green Rotation laser, a receiver, target plate and carrying case.
Features:
- H Auto-leveling
- Tilt Warning
- Manual Mode
- Calibration Mode
- V Auto-levelling
- Manual Slope Mode
- Speed Select Spot Mode
- Scan Mode
- Vertical Up Beam
- Sensor for Remote
Specifications:
- Horizontal Rotary Accuracy: +/- 1 mm at 10m (20 inches)
- Vertical Rotary Accuracy: ±1.5 mm @10m (30”)
- Vertical Up Beam Accuracy: ±3.0mm at 30m
- Compensation Range: greater than or equal to 5 degrees
- Slope Range: ±10%
- Minimum Increment ±0.01%
- Scan Range 15°,30°,60°
- Working Range with detector 0.5m ~ 300m
- Levelling Time: ≤20s
- Rotation Speed: 600/300/150/0 RPM (±10%)
- Laser Class: Class 2 (EN60825-1,2014)
- Laser wavelength: (R)635nm/(G)520nm
- Operating Time: ≧60h(RED)/≧40h(GREEN)
- Recharging Time: <8h
- Power Supply: 2x 26650 Li-Ion battery pack
- IP Rating: IP66
- Operating Temperature Range: -10 ~ +40°C
- Storage Temperature Range: -20 ~ +60°C
