G Logger Data Logger - UA-004-64

ORDER ME IN
Product code: UA-004-64

Backorder Now, once ordered your item will dispatch before the 30th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

G Logger Data Logger. With 2 Year Extended Warranty!

Read more

$247.00 AUD + GST
 $271.70 AUD Inc. GST

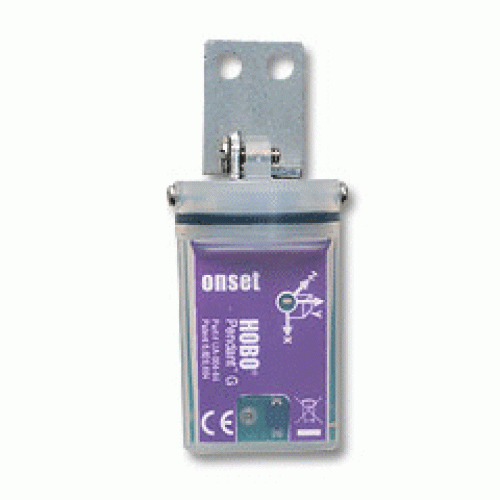

Onset's HOBO Pendant G logger measures acceleration or angular displacement in 1, 2 or 3 axes. Applications include monitoring sports activity, medical therapy compliance, or any activity or process where 3-dimensional motion is present. The Pendant G Logger provides valuable data for documenting and improving performance.

Features:

  • Low-cost temperature with alarm indication or light intensity
  • Waterproof housing for wet or underwater use
  • Data readout in less than 30 seconds via fast Optic USB interface

Requires the Hoboware software above as well in addition to a USB Base Station

Specifications

Measurement range: +- 3 g; 29.4 m/s2 (96.5 ft/s2)
Accuracy:
* +- 0.075 g; 0.735 m/s2 (2.41 ft/s2;) at 25 C (77 F);
* +- 0.105 g; 1.03 m/s2 (3.38 ft/s2) from -20 C to 70 C (-4 F to 158 F)

Resolution: 0.025 g; 0.245 m/s2 (0.8 ft/s2)
* Logging interval:
* 1 second to 18 hours, 12minutes, 15 seconds in Normal mode
* 0.01 seconds (100 Hz) to 0.99 seconds (1.01 Hz) in Fast mode

Time accuracy: +- 1 minute per month at 25 C (77 F)

Operating range:
* In water/ice: -20 to 50 C (-4 to 122 F)
* In air: -20 to 70 C (-4 to 158 F)

Water depth rating: 30 m from -20 to 20 C (100 ft from -4 to 68 F)

Battery life:
* 1 year typical use in Normal mode;
* 7 days logging at 0.01 seconds (100 Hz) in Fast mode
* Memory: 64K bytes (approximately 21.8K combined x-, y-, and z-axis readings or events)
* Materials: Polypropylene case; stainless steel screws; Buna-N o-ring
* Weight: 18 g (0.6 oz)
* Dimensions: 58 x 33 x 23 mm (2.3 x 1.3 x 0.9 inches)
