UB-RA-N1 Rainfall Sensor for GS1-S
Backorder Now, once ordered your item will dispatch before the 23rd of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
Rainfall sensor for GS1-S series. Provides direct measurement of rainfall without using secondary calculations through the MODBUS-RS485 interface.
- Tipping bucket rain gauge with a three-dimensional streamlined designed.
- Self-washing and easy to clean.
- With standard audio interface design.
Regular price
$339.10 AUD
+ GST
$373.01 AUD Inc. GST
$373.01 AUD Inc. GST

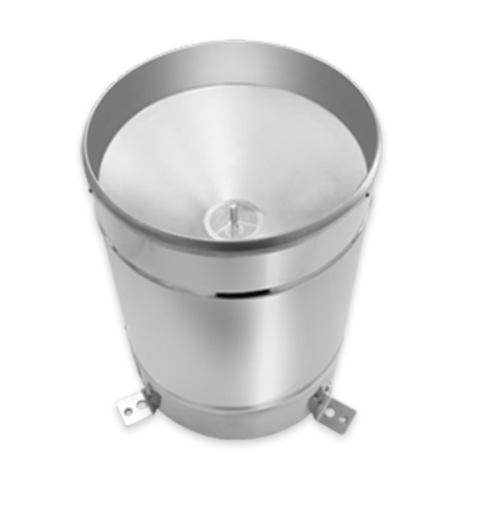

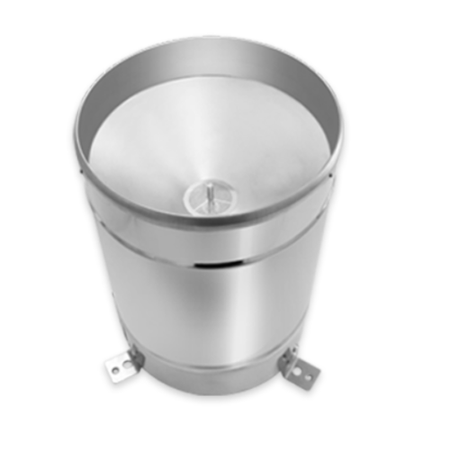

The rainfall sensor adopts a stainless steel housing and the data is read directly from the rainfall through the MODBUS-RS485 interface, without the need for secondary calculation, which is simple and convenient. The core component - the tipping bucket, adopts a three- dimensional streamlined design, which makes the water turning more fluent and has the characteristics of self-washing. The bucket sleeve is an integrated positioning structure, the internal structure is assembled at the factory, so there is no need to install the internal structure on site. This probe can be used in agriculture, industry and other outdoor applications.
Features:
- RS485 interface, long communication distance
- Three-dimensional streamlined tipping bucket design, turning water more smoothly
- Self-washing and easy to clean
- Super stability and anti-interference ability
- Standard audio interface design
- Wide voltage input, DC4.5 to 30V
- Standard MODBUS RTU protocol
- Easy to install, plug and play.
Specifications
- Working Voltage: DC 4.5 to 30V
- Measuring Range: 0 to 4mm/min (max 8mm/min)
- Measuring Accuracy: +/- 0.32 mm (simulated rainfall 4mm/min)
- Resolution: 0.2mm
- Rain-bearing Diameter: 200mm
- Sharp Angle of Cutting Edge: 40 to 45 degrees Communication Protocol MODBUS RTU ( RS485)
- Working Environment: 0 to 55 c , less than 95%(40 C)
- Interface Type: Audio Interface
- Cable Length: 3m
