UbiBot Smart Leak Detector LD1 (Wifi and Cellular) - IC-LD1-AL4G2L
Backorder Now, once ordered your item will dispatch before the 23rd of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

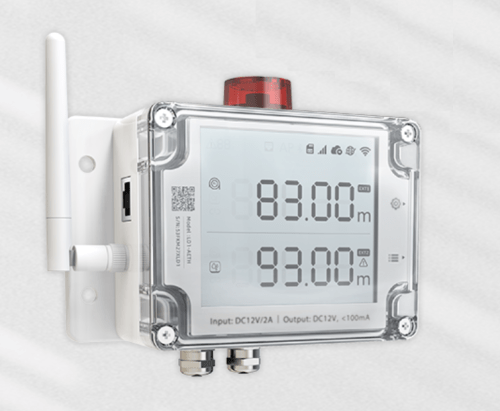

The UbiBot LD1 is an IoT leak detector that monitors and identifies liquid leaks. This model can has Wifi and cellular (2G/3G/4G) connectivity.
- Built with a sensisitive, durable and fire-resistant water detection cable.
- Triggers an audible and visual alarm immediately and display the location of the leakage on the LCD screen in real time.
- Has a disconnect alarm notification in the case of cable failure.
Regular price
$399.40 AUD
+ GST
$439.34 AUD Inc. GST
$439.34 AUD Inc. GST
The UbiBot LD1 supports double-sided leak detection, 24/7 detection of conductive liquid leaks, sensitive and accurate sensing, and immediate alarm when leakage happens. When UbiBot LD1 detects the liquid leakage, it will trigger an audible and visual alarm immediately and display the location of the leakage on the LCD screen in real time.
The LD1 is also designed with high-sensitivity water-detection cable which is fire-resistant and wear-resistant, with high breaking resistance, stable and reliable. The wire core sheath is made of quick-drying material, which can be quickly restored to normal state after wiping or drying.
Multi-mode alerts, comprehensive security. Once the alarm has been triggered, it can be turned off by using any button. The monitoring vacuum period can be set on the platform, and the alarm will be re-opened automatically.
The LD1s interface automatically outputs DC 12V when the alert is triggered. UbiBot Sound & Light Alarm can be connected with LD1. Using solid relay's 220V output is used to enable control of pumps, solenoid valves, and other similar components.
Real-time monitoring of the device's working status, alerts for detection of rope damage, breakage status alarms, timely detection of cable failure all ensuring stable operation of the device. This model has Wifi and cellular connectivity.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
Specifications
Detection Object
|
Non-corrosive conductive liquid
|
Detection Range
|
Up to 100m
|
Accuracy
|
+/- 0.5m
|
Response Time
|
less than 5s
|
Network
|
2.4GHz Wi-Fi( channels 1-13)/4G/ RJ45 Ethernet
|
Output Signal
|
RS485, Relay output (DC12Vless than or equal to 100mA
|
Power Supply
|
DC12V/1A
|
