Home > UC100 - IoT Controller - UC100-915M
Milesight

UC100 - IoT Controller - UC100-915M

ORDER ME IN
Product code: UC100-915M

Backorder Now, once ordered your item will dispatch before the 17th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

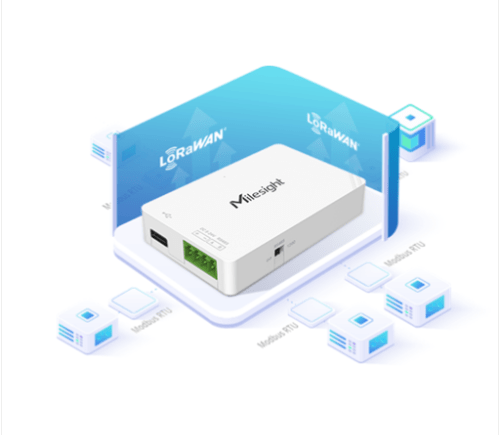

The UC100 is an IoT controller used for remote control and data acquisition from Modbus RS485 devices via LoRaWAN networks. It can read up to 16 Modbus RTU devices and support Modbus transparent transmission between server and RS485 devices as a Modbus to LoRaWAN converter.

  • Collects data from on-site Modbus RTU devices, and transmitting them to the Internet via LoRaWAN.
  • Offering a RS485 interface for connecting a range of field sensors or devices.

Read more

$89.90 AUD + GST
 $98.89 AUD Inc. GST
Note: Requires a Gateway to utilise the IoT Cloud software
The UC100 is an IoT controller used for remote control and data acquisition from Modbus RS485 devices via LoRaWAN networks. It can read up to 16 Modbus RTU devices and support Modbus transparent transmission between server and RS485 devices as a Modbus to LoRaWAN converter. Besides, UC100 supports multiple trigger conditions and actions which can work autonomously even when the network dropped. Combining with Milesight IoT Cloud solution, it can monitor and control remote assets via web server or mobile App easily. UC100 is widely used in indoor applications like smart metering, smart cities, building automation, etc.
When Working as a Milesight D2D Controller Device: Triggered by RS485 device to send command to control other Milesight D2D agents
When Working as a Milesight D2D Agent Device: Receiving command from other Milesight D2D controllers to control local RS485 device
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
UC100-915M Features
- Easy Local & Remote Configuration: USB Type-C Port Local Configuring; LoRa Downlink Remote Configuring
- Users are able to set up 16 commands based on custom trigger conditions (If-Then Statements) & actions to realize intelligent task.
- Milesight RS485 to LoRaWAN Controller UC100 can execute the commands autonomously even when the network is unavailable.
- Store, manage and analyze all your data with a few clicks using the IoT Cloud

Specifications

Antenna
Internal Antenna
Frequency
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power
16dBm (868 MHz)/22dBm (915 MHz)/19dBm (470 MHz)
Sensitivity
-137dBm at 300bps
Mode
OTAA/ABP Class C
Advanced Feature
LoRa D2D Controller, LoRa D2D Agent
Port
1x RS485
Connector
3.5 mm Terminal Block
Terminal Resistor
1x 120 ohms Resister Switch
Baud Rate
1200 to 115200 bps
Protocol
Modbus RTU, support reading 16 register values
Configuration Port
1x Type-C
Reset Button
1x Reset Button (Internal)
LED Indicator
1x System
