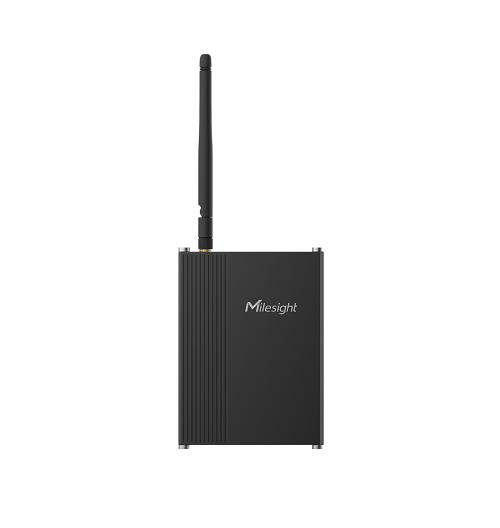

UC300 - IoT LoRaWAN Controller - UC300-915M
Backorder Now, once ordered your item will dispatch before the 17th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The UC300-L05AU is an IoT controller used for remote control and data acquisition from multiple sensors via LoRaWAN network.
- Contains different I/O interfaces such as analog inputs, digital inputs, relay outputs, serial ports and so on, which support remote device data transmission.
- Specifically built for autonomous operation.
- With a rich industrial interface that includes 6x Analog Inputs, 4x Digital Inputs, 2x Digital Outputs and 1x RS232 + 1x RS485.
Regular price
$229.30 AUD
+ GST
$252.23 AUD Inc. GST
$252.23 AUD Inc. GST
Note: Requires a Gateway to utilise the IoT Cloud software
The UC300-L05AU is an IoT controller used for remote control and data acquisition from multiple sensors. It contains different I/O interfaces such as analog inputs, digital inputs, relay outputs, serial ports and so on, which support remote device data transmission and control via 3G/4G networks or SMS. Besides, theUC300-L05AUsupports multiple trigger conditions and actions which works autonomously even when the network drops.
Rich Industrial Interfaces: The UC300 is capable of integrating 6x Analog Inputs, 4x Digital Inputs, 2x Digital Outputs and 1x RS232 + 1x RS485
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
UC300-915M Features
-Users are able to set up 16 commands based on custom trigger conditions & actions to realize intelligent task like timing data collection.
-Milesight UC300 IoT controller can execute the commands autonomously even when the network is unavailable.
- Support TCP/UDP/MQTT protocol, UC300 IoT controller is compatible with multiple Cloud platforms such as AWS (for cellular version only) and Milesight IoT Cloud.
- Store, manage and analyze all your data with a few clicks using the IoT Cloud
Specifications
Technology
|
LoRaWAN
|
LoRaWAN
|
CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4; OTAA/ABP Class C
|
Interface Type
|
3.5 mm Terminal Block
|
GPIO
|
4x DI + 2x DO
|
Serial Port
|
1x RS232 + 1x RS485
|
Analog Input
|
2x 4-20 mA, 2x 0-10 V, 2x PT100 RTD Input
|
Configuration Port
|
1x Type-C
|
LED Indicators
|
1x System, 1x ACT
|
Built-in
|
Watchdog, Timer
|
Operating Temperature
|
-20 to 60 C (-4 to +140 F)
|
Dimensions
|
93 x 70 x 22 mm (3.66 x 2.76 x 0.87 in)
|
Installation
|
Desktop, Wall Mounting, DIN Rail Mounting
|
