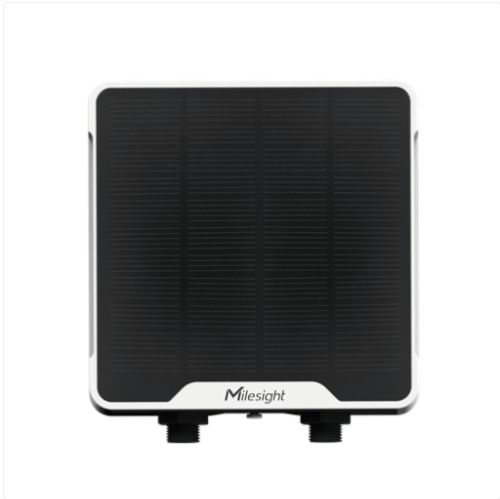

UC501-915M - Wireless LoRaWAN Controller (Solar Powered)
Backorder Now, once ordered your item will dispatch before the 18th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The UC501-915M is a solar-powered LoRaWAN controller used for data acquisition from multiple sensors.
- Made specifically for outdoor applications with a solar panel, IP67-rated enclosure and M12 connectors.
- Contains different I/O interfaces such as analog input, digital input, digital output, serial port to connect all types of sensors, meters and other appliances.
- Can be configured easily via NFC or wired USB port.
Regular price
$259.60 AUD
+ GST
$285.56 AUD Inc. GST
$285.56 AUD Inc. GST
Note: Requires a Gateway to utilise the IoT Cloud software
THe UC50x series is a LoRaWAN controller used for data acquisition from multiple sensors. It contains different I/O interfaces such as analog inputs, digital inputs, digital outputs, serial ports and so on, which simplify the deployment and replacement of LoRaWAN networks
It can easily and quickly configured by NFC or wired USB port. For outdoor
applications, it provides solar or built-in battery power supply and is equipped with IP67-rated enclosure and M12 connectors to protect itself from water and dust in harsh environments.
TheUC501-915M also has built-in multiple industrial interfaces to connect all types of sensors, meters and other appliances. These includes RS232, RS485, GPIO, and Analog Input.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
UC501-915M Features
- Easy to connect with multiple wired sensors through GPIO/AI/RS232/RS485 interfaces
- Long transmission distance up to 15 km with line of sight
- Waterproof design including IP67 case and M12 connectors
- Solar powered
- Quick wireless configuration via NFC
- Compliant with standard LoRaWAN gateways and network serve
Specifications
|
Frequency
|
CN470/IN865/EU868/AU915/US915/KR920/AS923
|
|
Interface 1
|
2x GPIO, 1xRS485/RS232 switchable, 1x 3.3 V output and 15/9/12 V output switchable
|
|
Interface 2
|
2x analog input 4-20 mA or 0-10 V (Switchable), 1x 3.3 V output and 1x 5/9/12 V output switchable
|
|
Dimension
|
120.1 x 120.1 x 55.4 mm (4.73 x 4.73 x 2.18 in)
|
|
Power Supply
|
Rechargeable; 5100 mAh battery with solar panel
|
