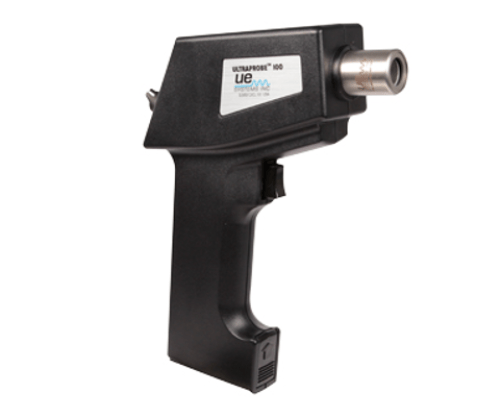

Ultraprobe 100 Complete Kit

ORDER ME IN
Product code: UP100KT

Backorder Now, once ordered your item will dispatch before the 09th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The Ultraprobe 100 is an entry-level ultrasonic leak detector for detecting compressed air and faulty steam traps.

-Handy device that is quick and easy to learn for point & shoot troubleshooting.

-Features an 8-position sensitivity dial with decibel indications.

Read more

$2,953.00 AUD + GST
 $3,248.30 AUD Inc. GST
The Ultraprobe 100 is a practical tool for any leak detection, steam trap inspection or troubleshooting program.
Why Choose this instrument?
- Easy to use
- Best in class entry level Ultrasound instrument!
- Comes with an universal interchangeable 9V battery
- Ideal for point & shoot troubleshooting
Ultrasound Technology is the smart approach to inspection:
- Ultrasound is very directional and localized
- Ultrasound can be easily blocked or shielded
- Ultrasound instruments can be used in noisy environments
- Changes in Ultrasound provide early warning of potential problems
- Ultrasound instruments are easy to use
- The Ultraprobe 100 features an 8-position sensitivity dial with decibel indications.
- Features an LED bar graph display in which each LED equals approximately 3 dB for calculating decibel levels.

Specifications

- Construction: Hand-held ABS pistol type ultrasonic processor, stainless steel sensor enclosures
- Circuitry: SMD/Solid State hybrid heterodyne receiver
- Frequency Response: Peak response: 36-44 kHz
- Indicator: 10 segment LED Bar Graph (red)
- Sensitivity Selection: 8 position precision attenuation
- Power: 9 Volt Alkaline Battery
- Low Battery Voltage Indicator: LED
- Transmitter: Patented warble tone transmission
- Response time: 300 msec
- Ambient Operating Temp. Range: 0 to 50 C (32 to 120 F)
- Relative Humidity: 10 to 95% non-condensing at up to 30 C (86 F)
- Storage Temperature: 18 to 54 C (0 to 130 F)
- Warranty: 5 years (1-year parts/labor standard, - details available on request)
- Dimensions: 13.3 x 5 x 20.3 cm (5.25 x 2 x 8)
- Weight: 0.3 kg (11 oz)
- Carrying Case: Nylon Cordura soft carrying case
The Ultraprobe 100 Kit includes:
- UP100 pistol housing with LED bar graph meter
- 8 position sensitivity selection
- Low battery indicator
- Scanning module
- Rubber focusing cone
- Stethoscope module,
- Warble tone generator with battery recharger
- Headphones
- 9 volt alkaline battery (replaceable)
- Soft Carrying Case
