Fast, accurate, and designed for ease of use, it often takes no more than 15 minutes to become competent in ultrasonic testing using the Ultraprobe 2000. Find compressed air and faulty steam traps, prevent machinery failure & listen to electrical systems for discharges.
Why Choose this instrument?
- Easy to use
- Adjustable Frequency from 20 kHz to 100 kHz
- Accurate analogue meter with meter mode function
- Ideally for point & shoot trouble shooting
Ultrasound Technology is the smart approach to inspection:
- Ultrasound is very directional and localized
- Ultrasound can be easily blocked or shielded
- Ultrasound instruments can be used in noisy environments
- Changes in Ultrasound provide early warning of potential problems
- Ultrasound instruments are easy to use
The Ultraprobe 2000 Close Focus also enables data reporting through three modes:
- Through auditory channels (via a headset that has been specifically selected for heavy duty industrial use)
- Through a uniquely designed bi-modal analog meter
- Through the ability to interface with vibration analyzers, & sound recording devices via the heterodyned output.
The Ultraprobe 2000 Close Focus can be adapted to test practically any problem in operating equipment with such features as:
- Frequency tuning: enables a user to tune into problem sounds while minimizing background interference.
- Meter mode selection: adjusts the meter response from a real time response to an averaging response. This feature allows accurate adjustments for leak detection and for mechanical analysis.
The Ultraprobe 2000 Close Focus can heterodyne ultrasound into audible range providing accurate sound reproduction
Sensitive only to ultrasonic frequencies, the Ultraprobe 2000 will not respond to the low frequency noises often associated with most plant equipment. Therefore, the instrument can be effectively utilized in very loud factory environments.
Features:
- Frequency Tuning Adjustment Dial: 20-100 kHz with fixed band position for ultra-narrow frequency response.
- Bi-Modal Meter Switch for logarithmic and linear meter scale adjustments.
- Optional Auxiliary Mode selection for chart recorder output: 0-50 mV.
- Sensitivity Control: Precision 10-turn adjustment dial with numerically calibrated sensitivity increments for finite gain adjustment.
- Spring loaded trigger switch
Specifications
- Construction: Hand-held metered pistol type made with aluminum and ABS plastic
- Circuitry: Solid State heterodyne receiver with temperature compensation
- Frequency Response: detects ultrasonic frequencies between 20 kHz and 100 kHz, continuously variable Frequencies are converted to 50 kHz to 3 kHz audio
- Transmitter: Patented warble tone transmission
- Headset: Noise isolating type: Double headset wired monophonic. Impedance 16 ohms. Over 23 dB noise attenuation. Meets or exceeds ANSI specifications and OSHA standards. For hard hat use.
- Indicators: Ballistic output meter; linear calibration scale of 0-100 for logging relative measurements. Meter is accurate 1% throughout entire scale. Low Level Battery LED indicator for main housing internal power supply.
- Battery: Self contained NiMH rechargeable. Recharging system: Standard 110V. Also available in 220V.
The Ultraprobe 2000 Close Focus kit includes:

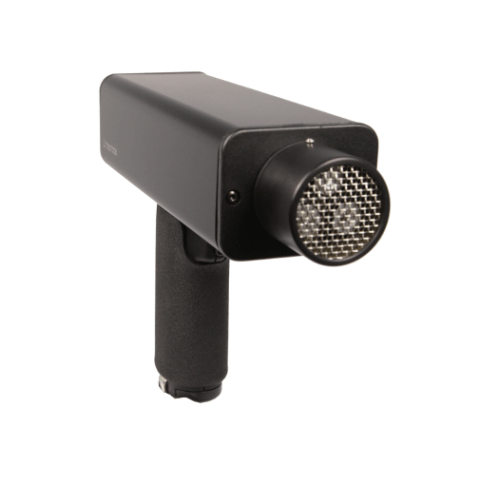

- Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
- Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
- Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
- Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
- Warble tone generator with amplitude selection switch for use in tone test method
- Close focus module (CFM-2) for low level leaks & vacuum leak detection

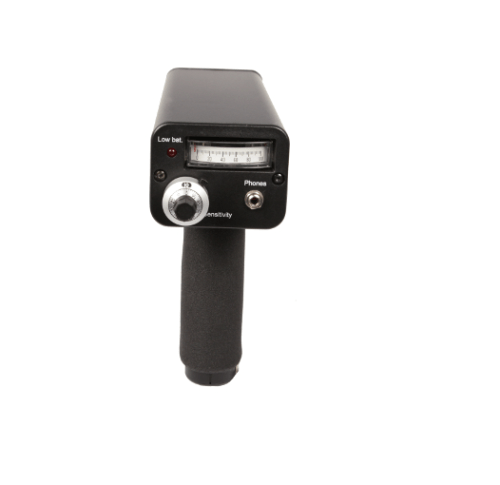

- Ultraprobe housing with metered pistol grip, ballistic meter, frequency tuning dial, 10 turn potentiometer, numerically calibrated sensitivity dial with selection lock, bi-modal meter selector switch, battery, battery indicator light, battery recharger receptacle and head set receptacle.
- Deluxe industrial noise reducing headset
- Battery recharge kit for main housing and warble tone generator
- Zero Halliburton aluminum carrying case
