Ultraprobe 201 Grease Caddy

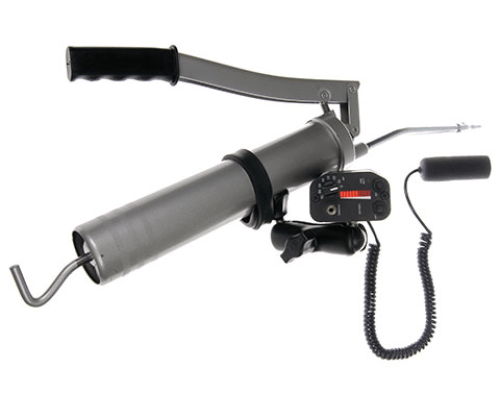

As lubrication levels fall, friction levels rise, producing ultrasonic waves, which are very directional and localized. Easily attached to most standard grease guns, or worn in an optional belt holster, the Ultraprobe 201 Grease Caddy translates high frequency sounds into the audible range, where users will hear and recognize bearing sounds. The Ultraprobe 201 Grease Caddy focuses in on these sounds, even in the noisiest environment and helps users identify when to stop lubricating.

The Ultraprobe 201 Grease Caddy will support your lubrication program resulting in:
- Prolong the life of your equipment
- Identify bearing issues by listening
- Prevent over lubrication
- Save on working hours & operational costs
- Improve maintenance efficiency
Additional useful features of the Ultraprobe 201 Grease Caddy:
- Easy to read LEDs provide visual indication of ultrasound amplitude
- Built-in front-end lamp to illuminate dark areas
- Swivel base adjusts to odd angles
- Heavy duty headphones for high noise environments
- Magnetically mounted transducer for ease of operation
- Optional belt holster makes it even easier to carry

The UP201 includes:
- Grease Caddy housing with LED display, headphone & battery charger receptacle, sensitivity dial, built in front end light & battery indicator.
- Swivel base mounting kit to connect the Ultraprobe 201 to your grease gun
- Battery charger
- Deluxe industrial noise reducing headset

Specifications

- Housing: Attaches directly to the grease gun, gives visual and audible indication for proper lubrication
- Construction: Aluminum housing
- Dimensions (LWH): 13.3 x 6.7 x 4.5 cm (5.25 x 2.65 x 1.25 inc)
- Operating Temperature: 0 to 60 C (32 to 140 F)
- Relative: 10 to 95% non-condensing at up 30 C (86 F)
- Humidity Circuity: SMD/Solid State heterodyne receiver
- Transducer: Magnetically mounted piezoelectric transducer
- Frequency Response: Peak response: centered around 38 kHz
- Indicator: 10 Segment LED Bar Graph (red) Bright white LED for illumination of test area
- Sensitivity Selection: 8 position precision attenuation
- Power: Rechargeable nickel metal hydride
- Power off: Time delay after five (5) minutes
- Indicators: dB, Frequency, Battery Status and 16 Segment Bar Graph
- Low Battery indicator: LED
- Headset: Deluxe noise isolating headset for hard hat use Over 23 dB of noise attenuation Meets or exceeds ANSI Specifications and OSHA standards
- Attachment: Universal: fits most commercially used cartridge grease guns
- Weight: 0.45 kg (16 oz )
- Warranty: 1-year parts/labor standard. 5 years with completed warranty registration card
