The UP3000SCis an ultrasonic monitoring instrument for efficient ultrasound data collection, inspection & analysis specially for monitoring airborne ultrasound such as pressure, vacuum and electrical emissions.
-Includes Stethoscope (contact) module for monitoring internal ultrasound and rubber focusing cone.
-Handy device for situations that require point-and-shoot trouble shooting and for energy conservation.
Regular price$6,960.00 AUD
+ GST $7,656.00 AUD
Inc. GST

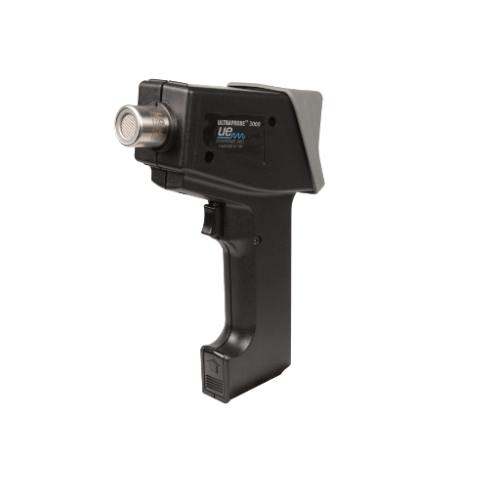

Here is a digital Ultraprobe that's versatile enough to cut energy waste and improve uptime while saving money, and improving the environment. The Ultraprobe 3000 is a digital ultrasonic inspection, information, storage, and retrieval system that comfortably fits in the palm of your hand.
Applications:
- Find your leaks & report cost per leak with DMS reporting
- Inspect for faulty steam traps
- Inspect electrical systems for discharge problems
- Troubleshoot bearing & mechanical problems
Why Choose this instrument?
- Easy to use
- Accurate & repeatable digital data with 400 storage points
- Ideally for point & shoot trouble shooting & energy conservation programs
- Comes with license free data management software (DMS) to create yearly cost per leak reports
On board data logging utilizing Ultratrend DMS providing:
- Download leak data via USB connection
- Manage your data, add comments & pictures
- Export leak data to a leak report in Excel
Features:
- Wide, dynamic sensitivity range
- 400 memory locations on-board for your test data
- Spin and click operations to customize inspection modes, store and view data and adjust instrument settings
- Lightweight pistol unit
- Easy-to-read display panel with calibrated decibel readout and a 16 segment bar graph. The display panel showcases sensitivity level, storage location number and battery level.
Specifications
- Construction: Hand-held pistol type made with ABS plastic
- Circuitry: Solid state analog and SMD digital circuitry with temperature compensation
- Frequency Response: 35 to 45 kHz
- Response Time: less than 10 ms
- Display: 128 x 64 Graphic LED with LED backlight
- Memory: 400 storage locations
- Battery: Li Polymer Rechargeable
- Operating Temperature: 0 to 50 C (32 to 122 F)
- Outputs: Calibrated heterodyned output, decibel (dB) frequency, USB data output
- Available Probes: Scanning module and stethoscope (contact) module, long range module, RAS MT
- Headset: Deluxe noise attenuating headphones. Over 23 dB of noise attenuation. Meets or exceeds specifications and OSHA standards
- Indicators: dB, battery status and 16 segment bar graph, sensitivity setting, record number
- Threshold: 1 x 10-2 std: cc/sec to 1 x 10-3 std. cc/sec
- Dimensions (Complete kit in Zero Halliburton aluminum carrying case): 38.1 x 55.9 x 11.43 cm)
- Weight (Meter): 0.45 kg
- Weight (Carrying Case): 4.99 kg
- Warranty: 1 year standard, 5 years with completed registration form
The Ultraprobe 3000 Stethoscope/Scanner Kit includes:
- Scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
- Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
- Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
- Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
- ULTRAPROBE pistol with decibel readout and 16 Segment bar graph display panel with the spin & click controls for sensitivity adjustment, data entry and 400 datapoint storage, the headphone jack, battery, mini USB I/O port, trigger on/off switch and module receptacle.
- Deluxe industrial noise reducing headset
- Li Polymer rechargeable battery and charger
- Zero Halliburton aluminum carrying case
- Comprehensive instruction manual
- License & update free included DMS software for yearly cost per leak reports
Video: Leak Survey SideKick App from UE Systems
