Whether used for troubleshooting or a pre-planned route, data is easily viewed on the display panel and stored with the push of a button. The easy-to-read display panel offers calibrated decibel readout and a 16-segment bar graph, which instantly registers sound intensity changes and simultaneously registers peak hold as you scan.
Applications:
- Establish a bearing route to identify early bearing failure & lubrication problems
- Find your leaks & report cost per leak with DMS reporting
- Inspect for faulty steam traps
- Inspect electrical systems for discharge problems
Why Choose this instrument?
- Easy to use
- Adjustable Frequency from 20 kHz to 100 kHz
- Accurate & repeatable digital data
- Ideally for point & shoot trouble shooting & data collection programs
- Comes with license free data management software (DMS) to efficiently manage & report asset condition
On board data logging utilizing Ultratrend DMS providing:
- Manage routes
- Up & download via USB connection
- Multiple data views
- History tables/spreadsheets
- Trend charts
- Export database & report documents to Excel

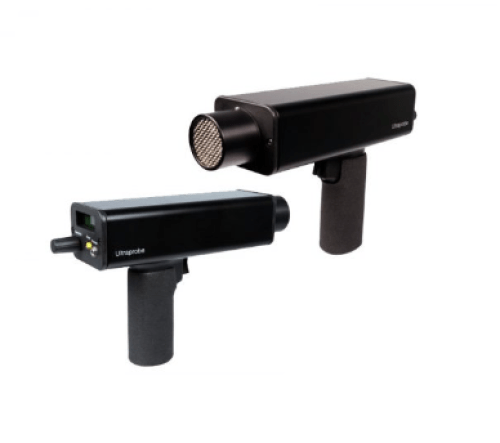

The Ultraprobe 9,000 Stethoscope Kit simplifies sound recording with user-friendly Spin and Click technology
Youll be amazed at how much you can accomplish with only 2 controls. By just spinning and clicking you can go through your inspection quick and easy:
- Store data
- Change frequency and sensitivity settings
- Adjust basic operation modes
- Selecting Snap Shot, Peak Hold & Real Time functions, and more.
Specifications
- Construction: Hand-held pistol type made with coated aluminium and ABS plastic
- Circuitry: Solid State SMD Digital Circuitry with temperature compensation
- Frequency: 20 kHz to 100 kHz (tunable in 1 kHz increments)
- Response Time: less than 10 ms
- Display: 16 x 2 LCD with LED Backlight
- Memory: 400 storage locations
- Battery: NiMH Rechargeable
- Operating Temperature: 0 to 50 C (32 to 122 F)
- Outputs: Calibrated heterodyned output, decibel (dB) frequency, USB data output
- Probes: Trisonic Scanning Module and Stethoscope Module
- Headset: Deluxe noise attenuating headphones for hard hat use
- Indicators: dB, Frequency, Battery Status and 16 Segment Bar Graph
- Sensitivity: Detects 0.127 mm (0.005 inch) diameter leak at 0.34 bar (5 psi) at a distance of 15.24 m. (50 ft.)
- Threshold: 1 x 102 std. cc/sec to 1 x 103 std. cc/sec
- Dimensions: 47 x 37 x 17 cm
- Weight (Pistol Unit): 0.9 kg
The Ultraprobe 9,000 Stethoscope Kit includes:
- Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
- Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
- ULTRAPROBE pistol grip housing is the main control unit. It consists of the display panel, the spin & click controls for volume/frequency adjustment, data entry and data storage, the headphone jack, battery, I/O port, trigger on/off switch and module receptacle.
- Deluxe industrial noise reducing headset
- Data cable I/O to USB
- Battery recharge kit for main housing and warble tone generator
- Zero Halliburton aluminum carrying case
- Comprehensive instruction manual
- License & update free included DMS software
