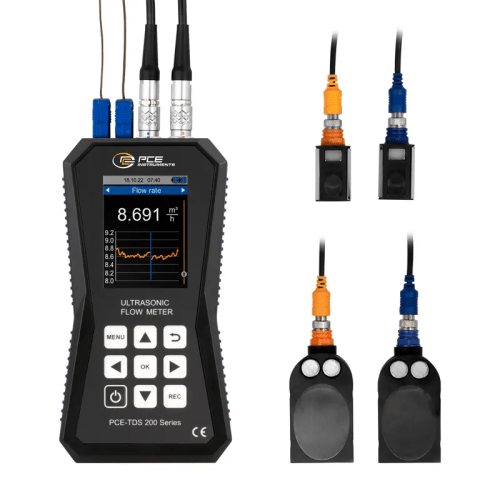

Ultrasonic Flow Meter PCE-TDS 200+ SL
Backorder Now, once ordered your item will dispatch before the 17th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
- - Has graphical display that shows whether the sensors are properly installed and positioned correctly for reliable measurements.
- - Includes with data logging features with 32 GB data memory.
- - Comes with two flow sensors and two thermocouple sensors.
$6,247.67 AUD Inc. GST
The ultrasonic flowmeter has a measuring range of 32 m/s. With an accuracy of 1.5 % f.s. for a pipe diameter of DN 50, 3.5 % f.s. for a pipe diameter of DN <50 and a reproducibility of 0.5 % f.s., the ultrasonic flow meter is a particularly precise measuring device. An installation aid is available for installing the sensors of the ultrasonic flow meter. The installation aid graphically displays the signal quality of the ultrasonic flow meter. In addition, it is graphically displayed whether the sensors of the ultrasonic flow meter are positioned at the correct distance from each other. To carry out flow measurements with the ultrasonic flow meter, the flow velocity, the volume flow and the volume are displayed after entering the pipe and medium specifications. The ultrasonic flow meter displays the measured values in a wide range of units. For example: m, l, gal, igl, mgl, cf, bal, ib and ob.
With the optional software, the recorded measured values can be read out from the ultrasonic flow meter. For analysis, the measured values from the ultrasonic flow meter can be displayed in tabular and graphic form. For further processing of the measured values from the ultrasonic flow meter, they can be exported in .csv file format. Alternatively, a PDF report can be created via the software. For simplified operation, the ultrasonic flow meter can be set via the software. A live view of the measured values from the ultrasonic flow meter is also possible with the software.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
PCE-TDS 200 S SENSOR
Small sensor pair for pipe diameters DN 15 ... 100 / 20 ... 108 mm. Suitable for particularly small pipes. The sensors have a particularly small dimension of 45 x 30 x 30 mm and a temperature resistance of -30 ... 160 C. Thanks to the magnets on the underside, the sensors can be mounted on ferrous metals. In addition, the sensors for the ultrasonic flowmeter can be connected to the pipe by means of detachable cable ties.
PCE-TDS 200 L SENSOR
Large sensor pair for pipe diameters DN 300 ... 6000. 6000. This sensor pair is therefore suitable for particularly large pipes. The sensors can be attached to the ultrasonic flow meter with detachable cable ties. Thanks to the built-in magnets, the sensors can be attached to pipes with ferrous metal. The sensors have a dimension of 91 x 52 x 44 mm.
Features:
- Measuring range +/-32 m/s
- USB-C interface for data transfer
- Optional software for analysing the measured values
- Reproducibility +/- 0.5 % of measured value
- Heat quantity measurement
- Data memory for 10 million measuring points
- individually adjustable alarm limits
- optionally with ISO or DAkkS calibration certificate
- Measuring range +/-32 m/s
- USB-C interface for data transfer
- Optional software for analysing the measured values
- Reproducibility +/- 0.5 % of measured value
- Heat quantity measurement
- Data memory for 10 million measuring points
- individually adjustable alarm limits
- optionally with ISO or DAkkS calibration certificate
- Measuring range +/-32 m/s
- USB-C interface for data transfer
- Optional software for analysing the measured values
- Reproducibility +/- 0.5 % of measured value
- Heat quantity measurement
- Data memory for 10 million measuring points
- individually adjustable alarm limits
- optionally with ISO or DAkkS calibration certificate
