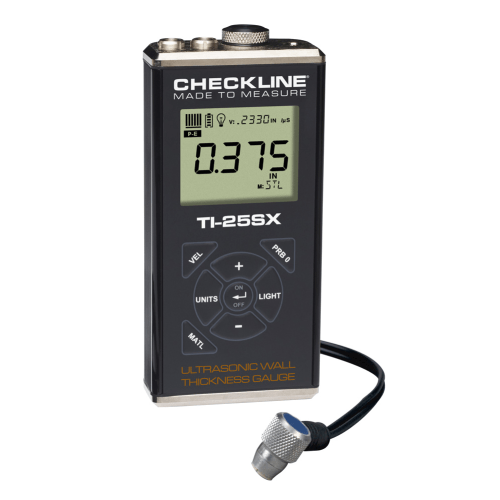

Ultrasonic Wall Thickness Kit - IC-TI-25SX
Backorder Now, once ordered your item will dispatch before the 13th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The TI-25SX allows the operator to select from 8 preset materials as well as program 2 custom material velocities allowing the user to tune the calibration to be optimized for a specific type of material.
Regular price
$2,959.30 AUD
+ GST
$3,255.23 AUD Inc. GST
$3,255.23 AUD Inc. GST
Please Note: Couplant gel required for use, not included, available for separate purchase and can be found
here.
The TI-25SX allows the operator to select from 8 preset materials as well as program 2 custom material velocities allowing the user to tune the calibration to be optimized for a specific type of material. The calibration can be locked to prevent any accidental adjustments. The preset materials are as follows:
- Steel 4340
- Stainless 303
- Aluminum 2024
- Cast Iron
- Plexiglass
- PVC
- Polystyrene
- Polyurethane
- Custom 1
- Custom 2
Features:
- The Transducer (probe) is waterproof and can be submerged in shallow water
- Special-purpose probes are offered for a variety of applications (1 to 10 MHz)
- Switch-selected units for inches or mm
- The extruded aluminum housing is impact-resistant and environmentally sealed (IP 65) to provide trouble-free operation under the toughest field conditions
- For underwater surveying, an optional 50 ft (15 meter) underwater probe/cable is available
- High visibility LCD Display is readable in all lighting conditions and temps as low as 22 F (-30 C)
- LCD shows Thickness Value, Velocity Setting, Stability Indicator, Battery Indicator and units
- Acoustic Velocity (calibration) is manually adjusted via the keypad
- 5 Year Warranty, CE-Certified and Made in USA
- Operates on two (2) AA Batteries - 45 hours continuous operation
- Selectable Backlight ON/OFF/AUTO
- Includes NIST Traceable Calibration Certificate
Specifications
- Total Measuring Range (depends on material and transducer/probe type): 0.63 - 914.4 mm/0.025 - 36.000 inches
- Measuring Range on Steel (with standard T-102-3300 probe included in the kit): 0.60 - 150.0 mm /0.025 - 6.00 inches
- Resolution of 0.001 inch (0.01 mm)
- Measuring Mode: Pulse-Echo (P-E)
- Velocity Range: 0.0120 to .7300 in/?s (305 to 18,542 m/sec)
- Probe (Standard): 1/4", 5 MHz Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-3300
- Probe Wearface: PEEK (Polyethylethylkytone)
- Cable: 1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors
- LCD Display: Multi-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values. Additional icons to indicate features and modes
- Display Backlight: Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
- Display Update Rate: 10 Hz (10 updates/sec)
- Keypad: Sealed membrane that is resistant to both water and petroleum products. Seven or eight tactile-feedback keys
- Pulse Repetition Frequency (PRF): 200 Hz (200 pulses/sec)
- Temp. Limits (Ambient): -30 to 75 C (-22 to 167 F)
- Temp. Limits (Material): -20 to 100 C (0 to 200 F)
- Housing: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
- Housing Rating: IP65
- Battery Type: 2x AA batteries (rechargeable batteries can be used)
- Battery Life: 45 hours continuous use
- Weight: 308 grams (11 ounces)
- Dimensions: 63.5 x 131.3 x 31.5 mm (2.5" x 5.17" x 1.25")
- Certifications: NIST Traceable and MIL-STD-45662A
Measuring limits:
- Minimum Radius for Convex Surfaces: 0.350" (8.89 mm)
- Minimum Radius for Concave Surfaces: 3" (76.2 mm)
- Minimum Headroom: 1" (25.0 mm)
- Minimum Sample Diameter: 0.150" (3.8 mm)
- Minimum Substrate Thickness - F: N/A
- Minimum Substrate Thickness - NFe: N/A
Complete kit:
Aside from the TI-25SX, this kit includes:
- T-102-3300 probe: Measuring range of 0.025 - 6.00 inches/0.60 - 150.0 mm.
- Dual-element probe
- 4 oz bottle of coupling fluid,
- 2 AA batteries
- Carrying case
