Underwater Ultrasonic Thickness Gauge - IC-TI-UMX2
Backorder Now, once ordered your item will dispatch before the 13th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

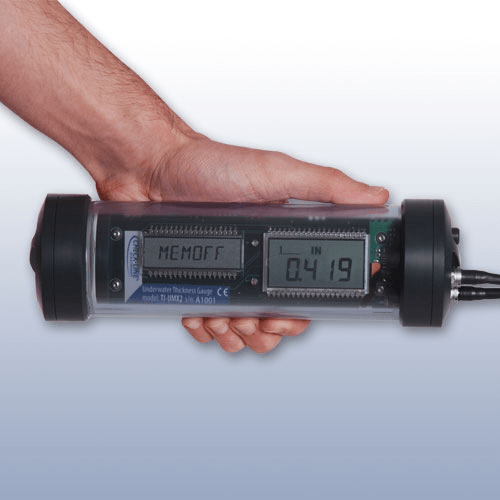

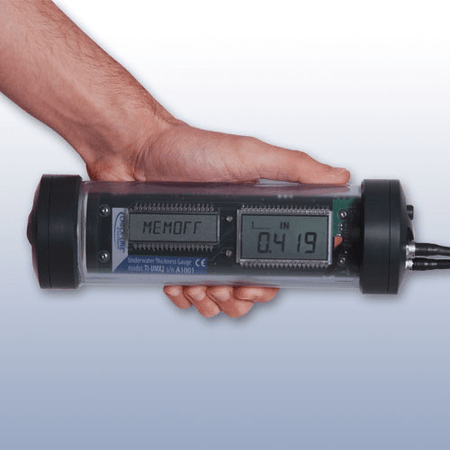

The new CHECK-LINE TI-UMX2 Underwater Wall Thickness Gauge accurately measures the wall thickness of all metals, extent of corrosion and the thickness of coatings on them -- at depths of up to 1000 feet (300 Meters).
Regular price
$8,179.70 AUD
+ GST
$8,997.67 AUD Inc. GST
$8,997.67 AUD Inc. GST
The new CHECK-LINE TI-UMX2 Underwater Wall Thickness Gauge accurately measures the wall thickness of all metals, extent of corrosion and the thickness of coatings on them -- at depths of up to 1000 feet (300 Meters).

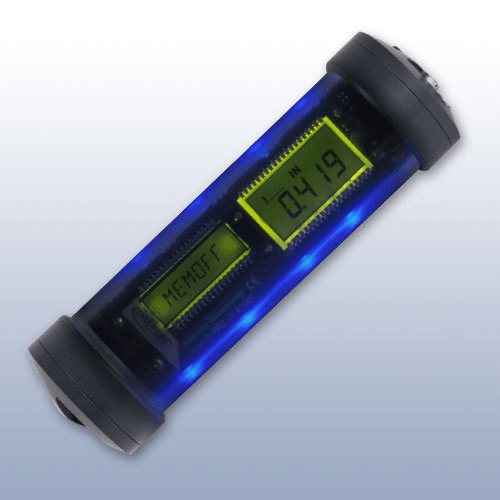

A back-lit LCD display and illuminated housing allow divers to easily read measurements in dark water.

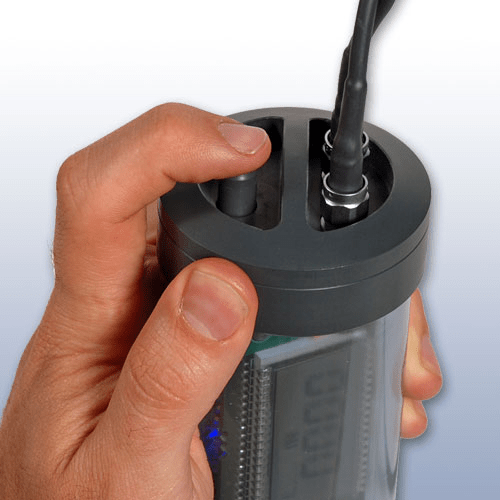

An over-sized control button and clever menu structure allows easy gauge setup and navigation through menus above or below water even when wearing thick
gloves.
The TI-UMX-2 can store up to 5000 readings including A-Scan Waveforms and settings for each individual measurement. There are 2 file structure options;
sequential with auto identifier and alpha numeric grid (row/column) format. The UMX-2 can transfer data and configuration settings to a PC using our
DataComm software. (Software and transfer cable included).
Velocity Settings:
The TI-UMX2 has 8 preset velocities and 1 custom velocity allowing the user to customize it for specific applications, or to tune the calibration to be
optimized for a specific type of material. The list of preset velocities are as follows:
- Aluminum 2024 - 0.2510 in/us
- Steel 4340 - 0.2330 in/us
- Stainless Steel 302 - 0.2230 in/us
- Iron - 0.2320 in/us
- Cast Iron - 0.1800 in/us
- PVC - 0.0940 in/us
- Polystyrene - 0.0920 in/us
- Polyurethane- 0
Features:
- Housing is rated for dive depths up to 1000 ft (300 meters) with backlit display
- Resolution of 0.001" (0.01 mm) with user-selected units of inch or mm
- Includes built-in datalogger for 5000 readings, settings and waveforms in sequential or "grid" (row/column) format
- Automatic probe recognition and auto zero
- Supplied with FREE NIST-Traceable Calibration Certificate
- Supplied with data transfer cable and FREE data analysis software
- Measure modes include: Pulse-Echo, Pulse-Echo w/ Coating, Echo-Echo and Triple Echo
- CE-certified with 3-Year Warranty (90 days on probe)
- Measures BOTH Wall and Coating Thickness
- Both Dual Element and Single Membrane Probes are offered
- Standard Probe supplied is 1/2"-5MHz HD-Coating, Underwater p/n T-074-2906
- All settings for gauge and datalogging can be done via software if desired
Specifications
- Range in Steel (Pulse-Echo Mode): Pit and Flaw detection measures from 0.025 - 9.999inches (0.63 to 254 millimeters)
- Range in Steel Pulse-Echo Coating Mode (PECT, Material, Coating, Pit & Flaw Detection): 0.025 to 19.999 inches (0.63 to 500 mil)
- Resolution: 0.001" (0.01 mm)
- Velocity Range: 8 fixed and 1 programmable Material Velocities, 0.0492 to 0.5510 in./us (1250 to 13995 m/sec)

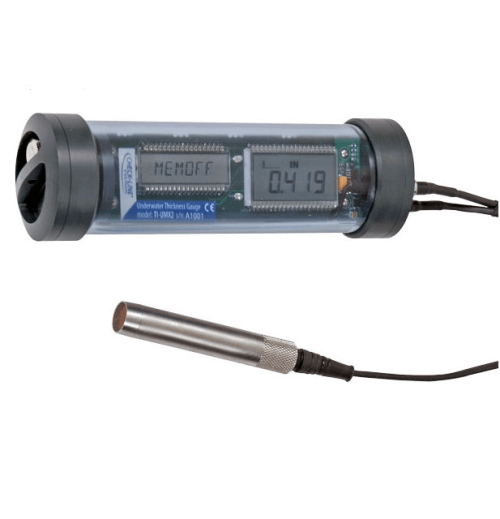

- Probe (Standard): Underwater Type, 1/2"-5MHz Dual-Element HD-Coating Probe
- Display: 4.5 - Digit, 0.5" Backlit LCD (2nd Display for menus, 3/8" 6 character LCD)
- Backlighting: Both Displays can be user set for ON/OFF/AUTO

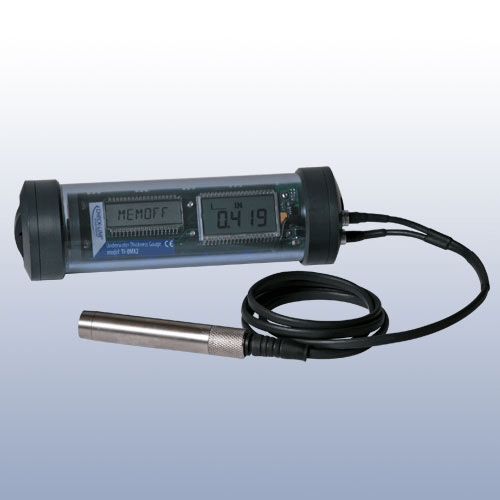

- Cable: 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
- Datalogger: GRID or SEQUENTIAL data storage, 5000 wall & coating readings, settings and waveform graphics
- Data OutputBi-directional RS232 serial port, with USB converter. Windows PC interface software
- Operating Modes: PE: Pulse-Echo/PECT: Pulse-Echo Coating/EE: Echo-Echo/EEE: Triple Echo TCG (requires T-9441-2809 MEMBRANE Probe)
- Pulsar: Dual square wave pulsars
- Receiver: Dual receivers - manual or AGC gain control with 110dB range (limited)
- Manual Gain: Limited to 5 gain settings (vlow, low, med, high, vhigh (42 to 50 dB)
- Temp. Limits (Ambient): -20 to 140 F (-30 to 60 C)

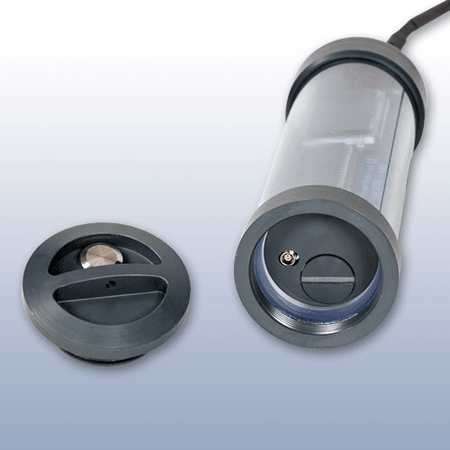

- Housing: High strength transparent plastic/IP 68 Waterproof Rating/Depth Rating: 1000 feet (300 meters)

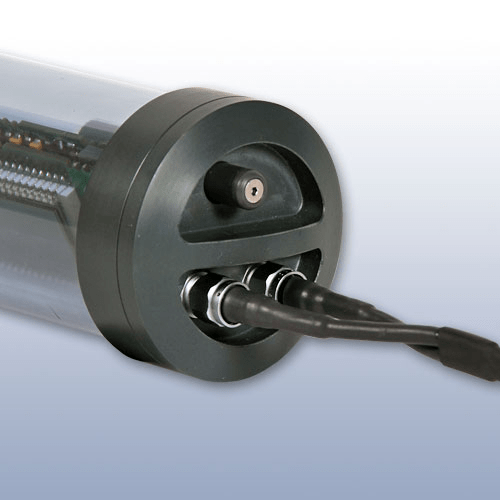

- Connectors: Lemo, Underwater Type

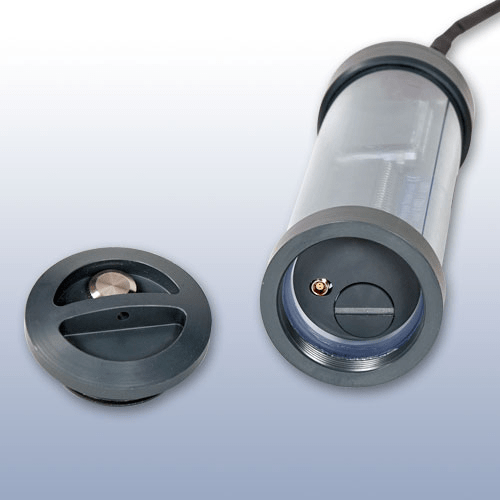

- Battery Type: Three (3) 1.5V AA alkaline batteries (or 1.2V NiCad)
- Battery Life (Backlight off, typical): 50 hours on alkaline (15 hours on NiCad)
- Battery Life (Backlight on, typical): 15 hours on alkaline (8 hours on Nicad)
