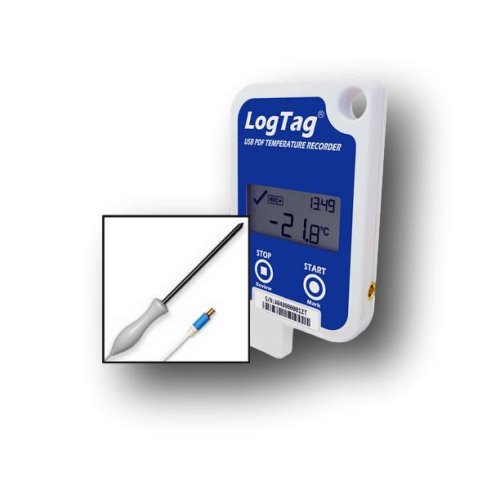

USB LogTag with Display and Handled Sensor (105mm tip, 1.5m cable)
Backorder Now, once ordered your item will dispatch before the 16th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
Temperature data logger with LCD display and visual alerts with handled sensor.
-See the current temperature at a glance with visual alerts if temperature exceeds set threshold.
-Easy to install and to use. Doesn't require a separate reader.
-Includes a 105 mm tip, handled sensor with 1.5 mm cable.
Regular price
$209.09 AUD
+ GST
$230.00 AUD Inc. GST
$230.00 AUD Inc. GST
Features:
- Temperature display: See the current temperature at a glance with the clear LCD display.
- Visual Alerts: If the Tag logs temperatures outside the safe range you have set, the display will show a cross, giving you an instant visual notification that there has been a problem.
- Easy to use: The LogTag is so simple to set up and use that you'll be an expert in no time. We have a full LogTag training program on our site.
- Includes handled sensor with 105 mm tip length, 5mm diameter.
Advantages of using an External probe:
LogTags are tough and versatile, but there are some places they just cant go.
In particular, when logging the temperature of liquids, you will need a probe. An example might be measuring the cooling rate of a large batch of custard. Probes are also useful to monitor temperatures inside coolers and other containers without removing the lid.
Another use might be measuring soil temperatures. The probe is driven into the soil while the LogTag remains clean and protected above ground.
Specifications
- External Sensor Measurement Range: -40 to +99 C (-40 to +210 F)
- Operating Temperature Range: -30 to +60 C (-22 to +140 F)
- Storage Temperature Range: 0 to +40 C (32 to +104 F)
- Recording Capacity: 16,129 temperature readings. 112 days at 10min logging, 168 days at 15min logging. Statistics memory (for display on LCD): Max/Min values and alarm duration values.
- Sampling Interval: Configurable from 30 seconds to 18 hours
- Logging Start Options: Push button start or specific date & time. Optional start delay of up to 72 hours
- Recording Indication: REC symbol on LCD
- Alarms: Three configurable upper and three configurable lower alarms.
- Download Time: Typically with full memory (16,129 readings) in less than 30 seconds from time of insertion to availability of PDF report. Typically less than 10 seconds from time of insertion to availability of LTD file in LogTag Analyzer (if configured)
- Environmental: IP61 (when vertically mounted or hung with USB dust-cap in place).
- Power Source: CR2450 3V LiMnO2 (Non-replaceable battery).
- Battery Life: 1 year storage, 2 years of normal use (based on 15 minute logging, download data monthly).
- Real Time Clock: Built-in real time clock. Rated accuracy +/- 25ppm at 25 C (equivalent to 2.5 seconds/day).Rated temperature coefficient is -0.034 +/- 0.006ppm/C (i.e typically +/- 0.00294 seconds/day/C).
- Connection Interface Standard: 1.5m (411).
- Extended: 3m (910) (Recommended maximum).
- Remote Sensor Cable: Type PTFE (FDA food contact rated), coaxial.
- Size: 93mm(H) x 54.5mm(W) x 8.6mm(T).
- Weight: 39g (without External Probe).
- Case Material: Polycarbonate.
Rated Temperature Reading Accuracy:
- Better than 0.1 C (0.2 F) for -30 to +60 C (-22 to +140 F)
- Better than 0.2 C (0.4 F) for -40 to -30 C (-40 to -22 F)
- Better than 0.5 C (0.9 F) for +60 to +99 C (+140 to +210 F)
LogTag Analyzer currently displays to one decimal place of C or F. The native resolution is what is stored in the Log.
Rated Temperature Reading Resolution:
- Better than +/- 0.5 C (+/- 0.9 F) for -20 to +40 C (-4 to +104 F), typically +/- 0.3 C (0.6 F).
- Better than +/- 0.8 C (+/- 1.4 F) for -40 to -20 C (-40 to -4 F), typically +/- 0.5 C (0.9 F).
- Better than +/- 0.8 C (+/- 1.4 F) for +40 to +70 C (+104 to +158 F), typically +/ 0.7 C (1.3 F).
- Better than +/- 1.2 C (+/- 2.2 F) for +70 C to +99C (+158F to +210F), typically +/- 1 C (1.8 F).
