USB Themocouple/Temperature Data Logger, Graphic LCD with Calibration Certificate

ORDER ME IN
Product code: IC-EL-GFX-TC-CAL-T

Backorder Now, once ordered your item will dispatch before the 11th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

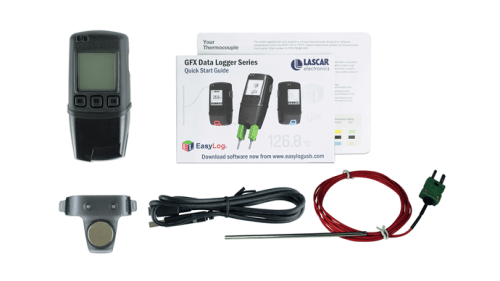

The EL-GFX-TC data logger measures and stores more than 250,000 temperature readings from a K, J or T-type thermocouple at a resolution of 0.1 C (0.2 F). It comes supplied with a K-type thermocouple capable of measuring from -0 to +200 C (32 to 392 F).

Read more

$459.00 AUD + GST
 $504.90 AUD Inc. GST

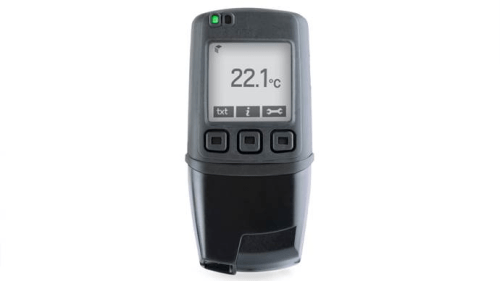

The data logger features a high contrast dot-matrix LCD and three buttons to navigate through an on-screen menu. This menu provides the user with access to real-time trend analysis, data summaries and the ability to start, stop and restart the data logger without the need to connect the data logger to the host-PC. Users can reset the maximum / minimum reading using the on-screen menu; this introduces an event marker into the data which can later be viewed in the graphing software ("Mark Events" option) and the data file after download.

Your application will determine which probe is most suitable based on temperature range, accuracy, form and price. A wide variety of alternative thermocouples are available from distribution.

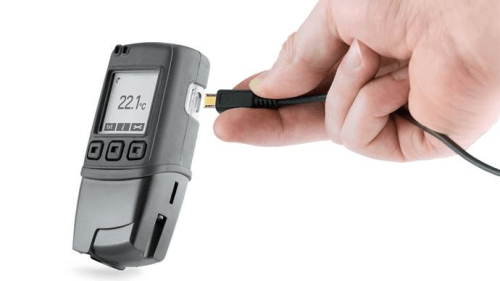

Initial configuration of the data logger is done with Lascar's EL-WIN-USB software running on Windows (compatible with 32-bit and 64-bit versions of Windows 7, 8 and 10). Data can then be graphed, printed and exported to other applications for detailed analysis.

The data logger is supplied complete with two lithium metal batteries, which can typically allow logging for up to 1 year.

Features:

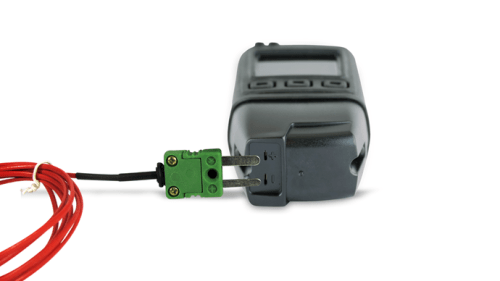

- Compatible with K, J and T type Thermocouples
- Logging rates between 2 seconds and 1 hour
- Immediate, delayed, push-button or temperature triggered start mode

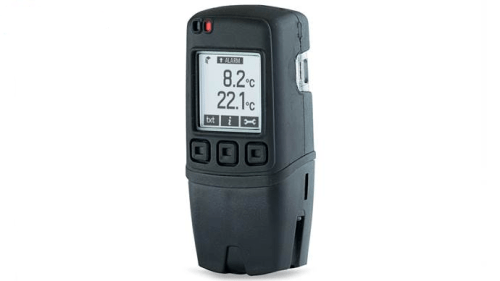

- Graphic LCD shows real-time readings, graph and current status
- Stores over 250,000 readings
- Calibration certificate available

Specifications

- Probe measurement range (K-type, supplied): 0 (32) to +200C (+392F)
- Probe measurement range (K-type): -200 (-328) to +1350C (+2462F)
- Probe measurement range (J-type): -200 (-328) to +1190C (+2174F)
- Probe measurement range (T-type): -200 (-328) to +390C (+734F)
- Accuracy (logger error): +-1.5C (+-2.7F)
- Internal resolution: 0.1C (0.2F)
- Logging rate: User selectable between 2 seconds & 1 hour
- Operating temperature range: -10 to +40C (+14 to +104F) (data logger only)
- Battery life: 1 year (at 25C, 1 minute logging rate, LCD off)
- Readings: 252,928
