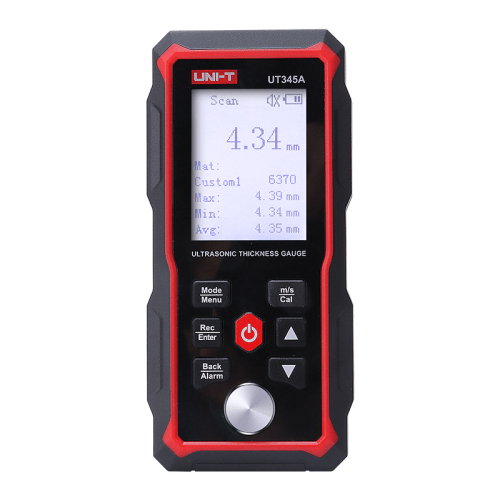

UT345A Ultrasonic Thickness Gauge - UT345A
Backorder Now, once ordered your item will dispatch before the 01st of July 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The UT345A is an advanced ultrasonic thickiness gauge that has a high-sensitive probe that can accurately detect any changes with the thickness of pipes, machine parts, pressure plates, etc. that can be changed due to wear or corrosion.
- - Measurement range: 1.00 to 300.00mm.
- - High-performance and low-power consumption.
- - Can store up to 300 groups of data.
Regular price
$169.60 AUD
+ GST
$186.56 AUD Inc. GST
$186.56 AUD Inc. GST
The UT345A is an intelligent ultrasonic thickness gauge that adopts the latest high-performance and low-power consumption microprocessor technology. Based on the principle of ultrasonic measurement, it can measure the thickness and sound velocity of metal and other materials. It can detect the thinning of pipes and pressure vessels after corrosion, and can make accurate measurements of plates and machined parts. The gauge can be widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace, and other fields.
2 Years Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
Features:
- 3.7V 2000mAh lithium battery
- Auto calibration
- 300 groups of data storage
- High-sensitive probe
- Buzzer alarm
- Multiple materials selection
- Main functions: single measurement, continuous measurement, alarm, sound velocity measurement, auto-calibration
Specifications
- Display: 2.4 LCD
- Measurement range: 1.00 to 300.00mm
- Sound velocity range: 10009999 m/s
- Unit: mm/in
- Accuracy: H<10mm, 0.1mm; H10mm, (1%H+0.1)mm
- Lower limit of pipe measurement: 203mm (steel)
- Data storage: 300 groups, including material, sound velocity, unit, measured value, MAX, MIN and AVG of each group
- Main functions: Single measurement, continuous measurement, alarm, sound velocity measurement, auto calibration
- Charging specification: DC 5V 1A, Type-C interface
- Operating time (full battery): About 16h
- Operating temperature and humidity: 0 to 40 C 10%RH to 80%RH
- Storage temperature and humidity: -10 to 50 C; 10%RH~70%RH
- Battery: Built-in lithium battery (3.7V 2000mAh)
- Product color: Red and grey
- Product net weight: 175g
- Product size: 140 x 66 x 28.5mm
