UV Separate Sensor with Handheld Meter - IC-MU-200

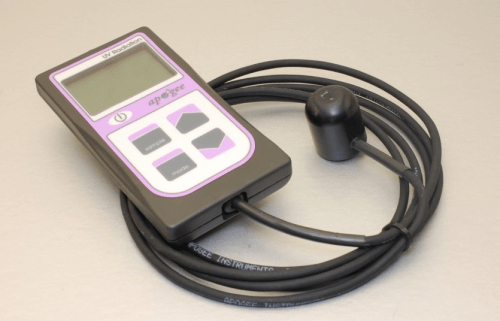

Apogee UV sensors incorporate a photodiode that measures combined UVA and UVB radiation. The IC-MU-200 has a separate sensor while the handheld meter displays and stores measurements. The meter offers a setting to measure UV in mol m-2 s-1 or Watts m-2. The sensor housing design features a fully potted, domed-shaped head making the sensor fully weatherproof and self-cleaning.
Specifications
Calibration Uncertainty: 10 %
Measurement Repeatability: < 1 %
Non-stability (Long-term Drift): < 3 % per year
Non-linearity: < 1 % (up to 300 mol m-2 s-1)
Response Time: < 1 ms
Field of View: 180
Spectral Range: 250 nm to 400 nm
Directional (Cosine) Response: 10 % at 75o zenith angle
Temperature Response: approximately 0.1 % per C
Operating Environment: 0 to 50 C, < 90 % non-condensing relative humidity up to 30 C, < 70 % non-condensing relative humidity from 30 to 50 C
Meter Dimensions: 12.6 cm length, 7.0 cm width, 2.4 cm height
Sensor Dimensions: 2.4 cm diameter and 2.8 cm height
Mass: 180 g
Cable: 2 m of shielded, twisted-pair wire, Santoprene rubber jacket
Warranty: 4 years
