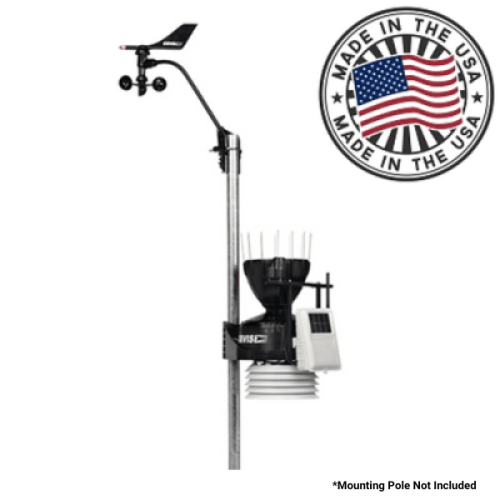

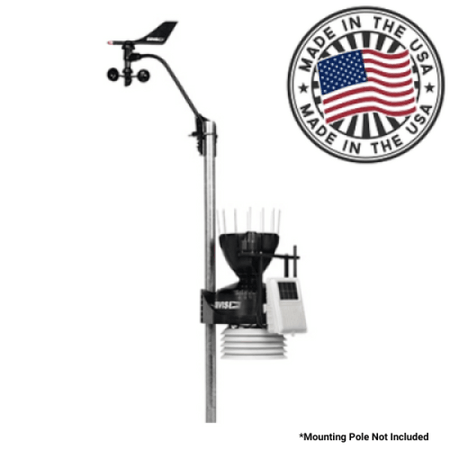

Vantage Pro2 Groweather Wireless Sensor Suite
Backorder Now, once ordered your item will dispatch before the 30th of April 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
Wireless Integrated sensor suite for use with Vantage Connect, Vantage Pro2 and Vantage Vue consoles or Weather Envoy and WeatherLink. The corrosion-proof sensor suite combines a rain collector; solar irradiance, temperature and humidity sensors; and anemometer into one package for rugged reliability and performance.
Regular price
$1,490.00 AUD
+ GST
$1,639.00 AUD Inc. GST
$1,639.00 AUD Inc. GST
Features:
- Temperature and humidity sensors are housed inside a radiation shield. The shield protects against solar radiation and other sources of radiated and reflected heat.
- Detachable anemometer provides wind speed and direction and can be sited up to 12 m above the other sensors.
- Ability to add UV sensor.
- Add cellular-based, solar-powered Wireless Vantage Connect to upload your weather data to the internet. Get real-time alerts for frost, evapotranspiration, high winds or other conditions you specify.
- Comes with the new Aerocone rain gauge offering more accurate measurements in strong wind conditions.
Specifications
General:
- Operating Temperature: -40 to +65 C
- Non-operating Temperature: -40 to +70 C
- Current Draw (ISS SIM only): 0.14 mA (average), 30 mA (peak) at 4 to 6 VDC
- Solar Power Panel: 0.5 Watts (ISS SIM)
- Battery (ISS SIM): CR-123 3-Volt Lithium cell
- Battery Life (3-Volt Lithium cell): 8 months without sunlight - greater than 2 years depending on solar charging
Sensor types:
- Wind Speed Sensor: Solid state magnetic sensor
- Wind Direction Sensor: Wind vane with potentiometer
- Rain Collector Type: Tipping bucket, 0.2 mm with metric rain adapter, 214 cm2 collection area
- Temperature Sensor Type: PN Junction Silicon Diode
- Relative Humidity Sensor Type: Film capacitor element
- Housing Material: UV-resistant ABS
Measurement Ranges
Relative Humidity (Outdoors):
- Resolution: 1%
- Range: 1 to 100% RH
- Accuracy: +/- 2%
- Drift: <0.25% per year
Rainfall:
- Resolution: 0.2 mm (user-selectable) (1 mm at totals > 2000 mm)
- Daily/Storm Rainfall Range: 0 to 999.8 mm
- Monthly/Yearly/Total Rainfall Range: 0 to 6553 mm
- Accuracy: For rain rates up to 100 mm/hr: +/- 4% of total or +/- one tip of the bucket (0.2mm), whichever is greater.
- Update Interval: 20 to 24 seconds
Rain Rate:
- Resolution and Units: 0.01" or 0.1 mm (user-selectable) at typical rates (see Fig. 2 and 3)
- Range: 0, 0 to 2438 mm/hr
- Accuracy: +/- 5% for rates less than 127 mm/hr
- Update Interval: 20 to 24 seconds
Solar Radiation:
- Resolution and Units: 1 W/m2
- Range: 0 to 1800 W/m2
- Accuracy: +/- 5% of full scale (Reference: Eppley PSP at 1000 W/m2)
- Drift: up to +/- 2% per year
- Cosine Response: +/- 3% for angle of incidence from 0 to 75
- Temperature Coefficient: -0.067% per F (-0.12% per C); reference temperature = 77 F (25 C)
- Update Interval: 50 seconds to 1 minute (5 minutes when dark)
Temperature (Outside):
- Resolution: 0.1 C or 1 C nominal C is converted from F rounded to the nearest 1 C
- Range: -40 to +65 C
- Sensor Accuracy: +/- 0.3 C See Fig. 1
- Radiation Induced Error (Passive Shield): 2 C at solar noon (insolation = 1040 W/m2, avg. wind speed < 2 mph (1 m/s)(reference: RM Young Model 43408 Fan-Aspirated Radiation Shield)
- Radiation Induced Error (Fan-Aspirated Shield): 0.3 C at solar noon (insolation = 1040 W/m2, avg. wind speed < 2 mph (1 m/s)) (reference: RM Young Model 43408 Fan-Aspirated Radiation Shield)
- Update Interval: 10 to 12 seconds
Wind Direction:
- Range: 0 - 360 degrees
- Display Resolution: 16 points (22.5) on compass rose, 1 degrees in numeric display
- Accuracy: +/- 3
- Update Interval: 2.5 to 3 seconds
Wind Speed:
- Resolution and Units: 1 mph, 1 km/h, 0.4 m/s, or 1 knot (user-selectable). Measured in mph, other units are converted from mph and rounded to nearest 1 km/hr, 0.1 m/s, or 1 knot.- Range: 0 to 200 mph, 0 to 173 knots, 0 to 89 m/s, 0 to 322 km/h
- Update Interval: Instant Reading: 2.5 to 3 seconds, 10-minute Average: 1 minute
- Accuracy: +/- 1 mph (1 kts, 1.5 km/h, 0.5 m/s) or +/- 5%, whichever is greater
Wireless:
- Transmit/Receive Frequency: 921 - 928 MHz FHSS
- ID Codes Available: 8
- Output Power: 921- 928 MHz FHSS, less than 10 mW, no license required.
- Line of sight: 300 m
- Through Walls: 15 to 60m
- Sensor inputs (RF Filtering): RC low-pass filter on each signal line
- Transmit/Receive Frequency: 921 - 928 MHz FHSS
- ID Codes Available: 8
- Output Power: 921- 928 MHz FHSS, less than 10 mW, no license required.
- Line of sight: 300 m
- Through Walls: 15 to 60m
- Sensor inputs (RF Filtering): RC low-pass filter on each signal line
