8 Channel High Accuracy Dc Current Data Logger

ORDER ME IN
Product code: VERSALOG-DCC-HR

Backorder Now, once ordered your item will dispatch before the 29th of April 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

8 Channel High Accuracy DC Current Data Logger. CH1 to CH7 Programmable Ranges of 0-20 mA, CH8 Internal Temperature

Read more

$954.00 AUD + GST
 $1,049.40 AUD Inc. GST

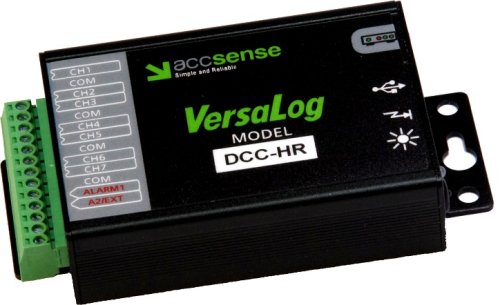

The VL-DCC-HR Current Data Logger is an 8-channel, battery powered, stand-alone DC current data logger. It records up to 4 megabytes of data and stores it in non- volatile flash memory for later retrieval. Input current signals can be from sensors, transducers, transmitters or any other common current sources.

Featuring an aluminum enclosure, the VL-DCC-HR Current Data Logger has excellent performance in the harshest industrial environment.

Powered by a 16-bit ADC and programmable input range, the logger is well suited to science and laboratory applications where precise and accurate measurement is critical.

Features:

-The 16-bit analog-to-digital converter meets most high-resolution requirements

-The 4-Mega-Byte Memory stores up to 2 million measurements
-One on-board thermistor channel monitors ambient temperature. Seven 0-20mA external input channels cover wide measurement requirements
-Can be accessed via USB, MODEM, or Ethernet connections with auto baud rate of up to 115 kbps
-Fast sampling mode
-Alarm and excitation output
-Siteview software required (1 license per site) and sold separately

All VersaLog data loggers come with 4MB onboard flash memory. The following table shows the relationship between the number of enabled channels, sampling interval and max time span of logging.

Sampling Interval
Number of Channels
Logging Capacity
1 min
1
3.98 years
1 min
2
727 days
1 min
8
181 days
10 sec
1
242 days
10 sec
2
121 days
10 sec
8
30 days
1 sec
1
24 days
1 sec
2
12 days
1 sec
8
3 days
100 milliseconds
1
58 hours
100 milliseconds
2
29 hours
100 milliseconds
8
7.2 hours
