Dc Voltage Data Logger With 10 Year Battery Life 0-160Mv
Backorder Now, once ordered your item will dispatch before the 25th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$645.65 AUD Inc. GST

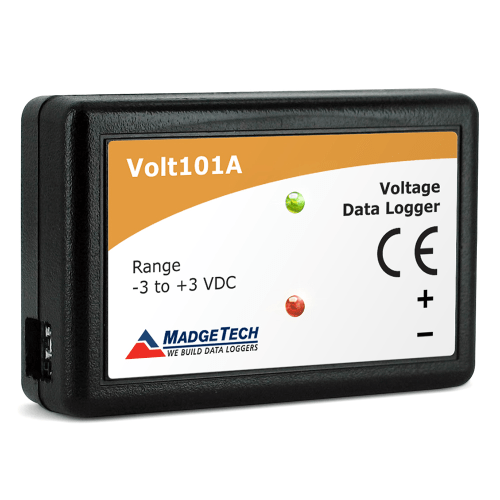

| The Volt101A-160mV is one of MadgeTechs newest data loggers. It is part of a new series of low cost, state-of-the-art data logging devices. MadgeTech has taken the lead in offering the most advanced, low cost, battery powered data loggers in the world today. The Volt101A-160mV offers a 10 year battery life, 4Hz reading rate, a multiple start/stop function, ultra-high speed download capability, 1 million reading storage capacity, optional memory wrap, battery life indicator, optional password protection, programmable high-low alarms and more. |
 |
Using the MadgeTech Software, starting, stopping and downloading from the Volt101A-160mV is simple and easy. Graphical, tabular and summary data is provided for analysis and data can in multiple units, using the Engineering Units
function. The data can also be automatically exported to Excel for further calculations.
As the leader in low power data logger technology, MadgeTech continuously improves its products and develops solutions to meet ever-changing challenges. The Volt101A-160mV was designed with our customers in mind. MadgeTech offers free
firmware upgrades for the life of the product so that data loggers already deployed in the field can grow with new technological developments. Units do not need to be returned to the factory for upgrades. The user can do this automatically from any PC.
Download Software and Cable
This unit requires the IFC200 for using the data logger
Specifications
Voltage
Voltage Range |
160mVDC |
|---|---|
Voltage Resolution |
5V |
Voltage Calibrated Accuracy |
0.01%FSR |
General
Memory |
1,000,000 readings 330,000 in enhanced start/stop mode |
|---|---|
Reading Rate |
4 readings every second to 1 every 24 hours |
Baud Rate |
115,200 |
LED Indicators |
Red & Green |
Battery Life |
10 years typical at a 15 minute reading rate |
Material |
ABS plastic |
Dimensions |
1.4" x 2.5" x 0.6" (36mm x 64mm x 16mm) |
Operating Environment |
-40~+80C, 0~95%RH non-condensing |
Required Interface Package |
IFC200 |
Approvals |
CE |
