Water Level Station for Water Level (+/- 0.5% of full scale), Conductivity and Temperature - IC-SNiP-HPT-SL

The SNiP-HPT is a 'Sensor Node Integrated Package' for LoRa, LoRaWAN, FSK or CAT-M1 communication of real-time water levels, electrical conductivity and temperature measurements for continuous environmental water monitoring, in both ground water and surface water.

The base SNiP-HPT integrates 1x S-NODE and 1x Hydros-21 Sensor to a site's unique network, communication and power requirements. The S-NODE can support an added 3x Sensors. The Hydros-21 Sensor has been designed to measure water levels, Electrical Conductivity and Temperature.

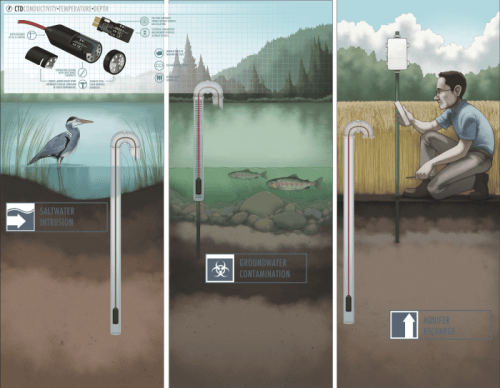

Applications:

- Aquifer recharge and recovery.
- Saltwater intrusion, desalination, and wastewater.
- Wetland monitoring.
- Groundwater contamination monitoring.

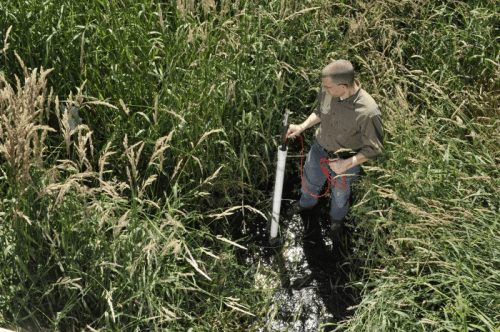

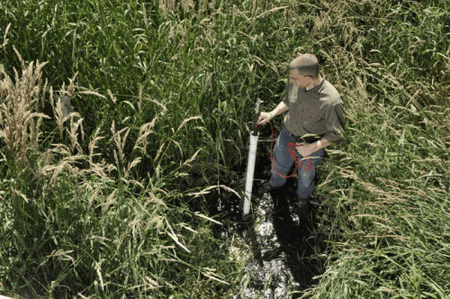

- Surface water monitoring.

Advantages:

- Robust marine-grade epoxy overmould to resist corrosion in tough environments.
- Compact 3.4 cm diameter sensor body to fit into tight spaces.
- External logger with remote transmission option to deliver data to your desktop.
- Permanent connection allows you to collect data continuously without pulling up the sensor.
- Low per-sensor cost.

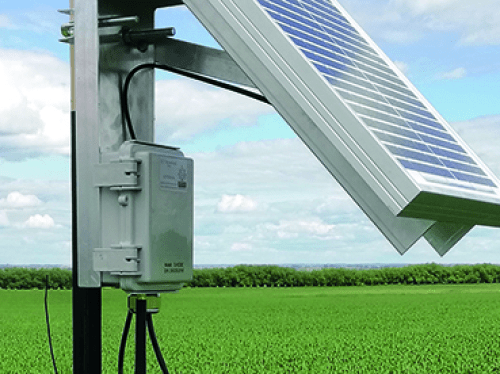

S-NODE: SDI-12 Node

Features:

- LoRaWAN low-power long-range connectivity
- Supports the full range of SDI-12 commands, and sensors requiring constant excitation.
- Optional CAT-M1
- Solar rechargeable Lithium-ion or external 12V power options
- Optional Multi-constellation GNSS
- AS923, AU915 and US915 available, with other region plans available upon request.
- Standard IP65 enclosure, optional IP67

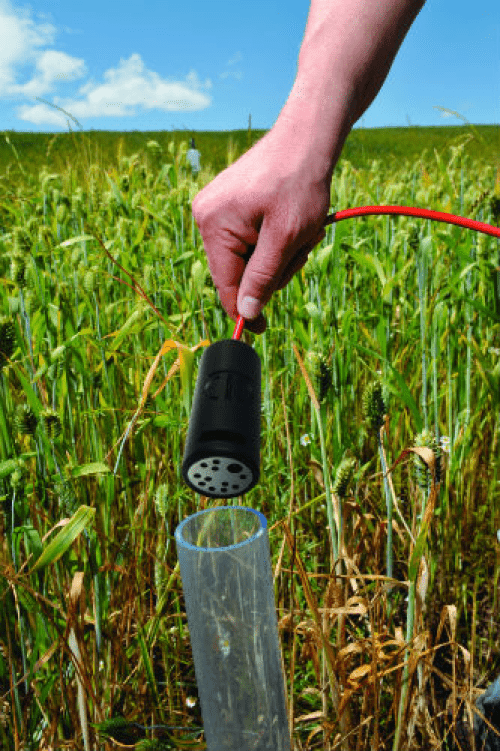

HYDROS 21 Water Level Sensor

The Meter HYDROS 21 sensor is a low cost, accurate tool for monitoring of water level, electrical conductivity, and temperature in both ground water and surface water. The sensor utilises a vented pressure transducer to obtain accurate water level measurements from 0 to 10m while removing the effects of barometric pressure. With a range of 0 to 120 dS/m, the HYDROS 21 sensor has the ability to make accurate electrical conductivity measurements in a broad range of applications.

Specifications

Water depth:

- Range: 0 to 10 m
- Resolution: 2 mm
- Accuracy: +/- 0.05% of full scale at 20 C

Electrical conductivity:

- Range: 0 to 120 dS/m
- Resolution: 0.001 dS/mT
- Accuracy: +/- 0.01 dS/m or +/- 10% (whichever is greater)

Temperature:

- Range: -11 to 49 C
- Resolution: 0.1 C
- Accuracy: +/- 1 C

Sensor:

- Operating temperature: 0 to 50 C (Pressure transducer cannot be allowed to freeze while submersed.)
- Power requirements: 3.6 to 15 VDC, 0.03 mA quiescent, 0.5 mA during 300 ms measurement
- Dimensions: 3.4 cm Diameter, 9 cm length (housing)
- Measurement time: 300 ms (milliseconds)
- Output: Serial TTL, 3.6 Volts Levels or SDI-12
- Connector types: 3.5 mm (stereo) plug, or stripped & tinned lead wires (3)
- Cable length: 10 m standard; custom lengths available upon request
- Data Logger Compatibility (not exclusive): Meter/Decagon Em50 Series, ProCheck, Campbell Scientific
- Software compatibility: ECH2O Utility (rev 1.64+), DataTrac3 (rev 3.4+)
