Water Quality Station (Salinity, Conductivity and Temperature) - IC-SNiP-SAL2-SL

ORDER ME IN
Product code: IC-SNiP-SAL2-SL

Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

LoRaWAn water quality station. Measures real-time salinity, conductivity, and temperature measurements for continuous water quality monitoring. Includes: 1 x CTZN, S-NODE with LoRaWAN communications, 13Ah rechargeable li-ion battery, 10W Solar Panel and SPLM7 mounting system for node and solar panel
Regular price $3,830.00 AUD + GST
$4,213.00 AUD Inc. GST

The SNiP-SAL2 is a €Sensor Node Integrated Package€ for LoRa, LoRaWAN, FSK, CAT-M1 or GNSS (optional) communication of real-time salinity, conductivity and temperature measurements for continuous water quality monitoring.

The base SNiP-SAL2 integrates 1x CTZN Sensor with 1x S-NODE to a site's unique network, communication and power requirements. The S-NODE can support an added 3x compatible sensors.

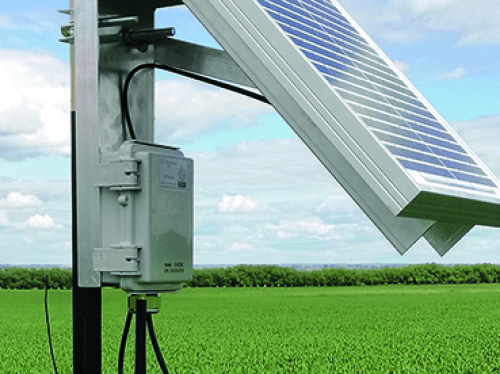

S-NODE

he S-NODE has been designed to support the broad suite of SDI-12 based environmental sensors. The S-NODE can support sensors with higher power requirements; a solar panel can charge either the internal lithium-ion battery or both the node and sensor can be powered by an external 12V system (e.g. battery or mains source). The S-Node's SDI-12 communications can be customised to allow for interfacing with any SDI-12 sensor.

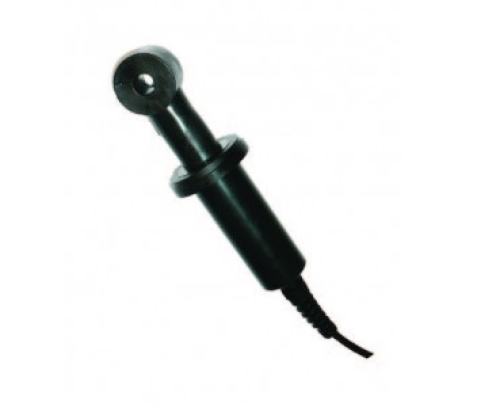

CTZN Inductive Conductivity Sensor features:

- Temperature regulated sensor
- Range 0 to 100 mS/cm
- Modbus RS-485 and SDI12
- Compact, robust and watertight
- Appropriate for urban wastewater treatment, industrial effluent treatment, surface water monitoring, sea water, and fish farming

CTZN Inductive Conductivity Sensor specifications:

- Measurement range (c0nductivity): 0 to 100 ms/cm
- Resolution: 0.1 ms/cm
- Measurement range (salinity): 5-60 g/Kg
- Temperature Compensation: Inbuilt NTC or external measurement
- Accuracy C: +/- 0.1 C, range 0-40 C
- Response Time: 90% of the value in less than 30 seconds
- Signal Interface: Modbus RS-485 standard; SDI-12 optional
- Measurement Interval: 1Hz
- Sensor Power Supply: 5 to 30 volts max.
- Current Draw: Automatic Standby: less than 50 uA, Heating time 100 ms/Average Modbus RS485 Range 0-100 ms/cm: 1Hz: / 5V: 31 mA/12V: 15.5 mA/24V: 11.5 mA
- Max. current pulse: 700 mA/2 ms, 350 mA/ 150ms

Sensor:

- Operating Temperature: 0 C to +50 C
- Storage Temperature: -10 C to +60 C
- Dimensions: Diameter: 62.4mm, Length: 196mm
- Weight: 700g (sensor and 3 meter cable)
- Material: EPDM, PVC, Stainless steel
- Maximum Pressure: 5 bar
- Connection: 9 armoured connectors, polyurethane jacket, bare-wires or waterproof Fischer connector
- Protection: IP68
