Wind Speed and Direction Hobo Smart Sensor Set
Backorder Now, once ordered your item will dispatch before the 05th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$2,196.70 AUD Inc. GST

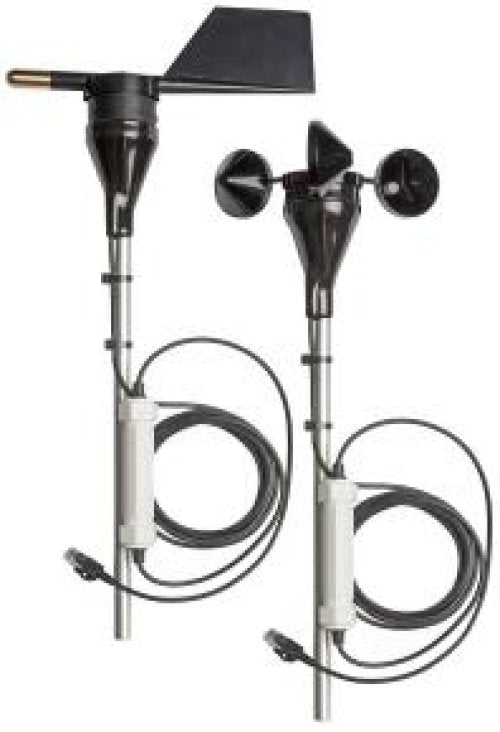

The Wind Sensor Set includes Onset's research-grade plug-and-play Wind Speed Smart Sensor and the Wind Direction Smart Sensor. This combination provides average wind speed, highest three-second wind gust and average wind direction for the measurement interval. These durable sensors will provide many years of accurate and reliable performance.
NOTE: Mount these on the M-CAA Full Cross Arm for proper sensor spacing for accurate wind measurement in all wind directions.
The cross arm must be mounted on a stable mast using guy wires as needed to prevent the sensors from vibrating in high winds.
Specifications |
Wind Speed/Gust (S-WSA-M003) | Wind Direction (S-WDA-M003) |
|---|---|---|
| Measurement Range | 0 to 76 m/s (0 to 170 mph) | 0 to 355 degrees, 5 degree dead band |
| Maximum Wind Speed Survival | 76 m/sec (170 mph) | 60 m/sec (134 mph) |
| Accuracy | 1.1 m/s (2.4 mph) or 4% of reading whichever is greater |
5 degrees |
| Resolution | 0.50 m/s (1.10 mph) | 1.4 degrees |
| Starting Threshold | 1.0 m/s (2.2 mph) | 1.0 m/s (2.2 mph) |
| Measurement Definition | Cup revolutions are accumulated every three seconds for the duration of the logging interval. Wind speed is the average speed for the entire logging interval. Gust speed is the highest three-second wind recorded during the logging interval. | Unit vector components of wind direction are accumulated every three seconds for duration of logging interval. Average direction is calculated from the average of these. |
| Operating Temperature Range | -40C to +75C (-40F to +167F) | -40C to +70C (-40F to +158F) |
| Environmental Rating | Weatherproof | Weatherproof |
| Service Life | Greater than 5 years typical | 4 to 6 years typical depending upon environmental conditions |
| Housing | Three cup polycarbonate anemometer: Modified Teflon bearings and hardened beryllium shaft with ice shedding design | Injection-molded housing and vane, static dissipating base, lead-free silicon bronze nose, and aluminum mounting rod. |
| Bearing Type | Modified Teflon bearings | two shielded stainless steel ball bearings |
| Turning Radius | 9.5 cm (3.75 in.) | Approximately 13.5 cm (5.25 in.) |
| Dimensions | 41 x 16 cm (16 x 6.5 in.) including 1.27 cm (0.5 in) diameter mounting rod; 5.5 cm (2.1 in.) drip overhang | 46 x 20 cm (18 x 8.5 in) including 1.27 cm (0.5 in) diameter mounting rod, 2.5 mm (0.1 in) drip overhang |
| Weight | Approximately 700 g (1.5 lbs) | Approximately 370 g (13 oz) |
| Number of Data Channels | 2 | 1 |
| Measurement Averaging Option | No | Automatic averaging (see Measurement Definition) |
| Cable Length Available | 3.5 m (11.5 ft) | 3.5 m (11.5 ft) |
| Length of Smart Sensor Network Cable | 0.5 m (1.6 ft) | 0.5 m (1.6 ft) |
| CE | The CE Marking identifies this product as complying with all relevant directives in the European Union (EU) | The CE Marking identifies this product as complying with all relevant directives in the European Union (EU) |
| Part Number | S-WSA-M003 | S-WDA-M003 |
A single HOBO Weather Station logger can accommodate 15 data channels and up to 100 m (325 ft) of smart sensor cable (the digital communications portion of the sensor cables).
