WINDCRANE Max

ORDER ME IN
Product code: Windcrane-Max

Backorder Now, once ordered your item will dispatch before the 16th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The WINDCRANE Max is a compact and easy-to-install wireless anemometer designed specifically for 24/7 wind speed monitoring for crawler and mobile cranes, with backup power system.

-Monitor wind data remotely in real-time for instant notifications about dangerous wind speeds.

-Comes with 12V rechargeable battery, rated for 2 weeks with a solar panel for self-charging.

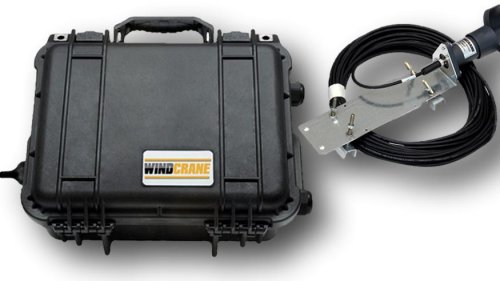

-The kit includes WINDCRANE Max anemometer, calibration certificate, 40m screened cable with M12 connectors and online data software (valid for 12 months).

Read more

$8,476.00 AUD + GST
 $9,323.60 AUD Inc. GST
This product is intended for 24/7 monitoring or where the application requires monitoring other variables in addition to the wind. It can accommodate 4 anemometers, 2 wind vanes and up to 8 additional sensors as required by client, for a total of 14 separate inputs.
Features:
- Wind speed measurement: Measures average and maximum wind speed with turbulence data.
- 24/7 Cloud storage: Daily and weekly back-up with recovery services
- Mobile network communications: 10 minute data transfer to cloud portal using global multi-network roaming SIM.
- Data Sampling: 1 Hz to IEC61400 and BSI EN 13000
- Hosting services: fully managed enterprise servers
- Wind data: Fleet management dashboard and mobile app.
- Wind speed alerts: Unlimited mobile phone wind speed alert notifications
- IP 67 High impact custom enclosure: Dust-tight, water-proof and corrosion-proof
- 12V rechargeable battery, rated for 2 weeks with an optional solar panel for self-charging

Specifications

Wind Sensor:
- Measurement range: 0.75 to 50 m/s
- Accuracy: 1% nominal, +/- 0.1 m/s (5 to 25 m/s)
- Power: Powered by logger (max 24 V/10 mA)
- Output signal: Pulse frequency output proportional to wind speed. Speed m/s = 0.382 x Hz
- Dimensions: Sensor height: 130 mm, rotor diameter: 190 mm. Mount tube plus sensor height: approx 300 mm
- Materials: Lexan/polycarbonate rotor and ABS body; PVC weather boot; low-friction self lubricating bearings
- Mounting: Integral mounting tube (250 mm length, 12.7 mm dia), 2no galvanised U-bolts and saddles for tubular poles of 25 to 40 mm.
WINDCRANE Max:
- Data connectivity: Built-in cellular connectivity with internal antenna and worldwide coverage; automatically uploads to WINDCRANE web portal and app
- Sensor options: 1x wind speed anemometer, connects via pre-wired M12 connector pigtail; internal temperature, humidity and barometric pressure and supply voltage sensors
- Power: Pre-wired inline mains power supply for 100 to 240VAC, 10W max consumption, with 3m cable and 230V and 12V rechargeable battery, rated for 2 weeks with an optional solar panel for self-charging
- Operating temperature: 30 to 60 C
- Enclosure: IP 67 High impact custom enclosure: Dust-tight, water-proof and corrosion-proof
