WINDCRANE Mini Jib End Kit

ORDER ME IN
Product code: Windcrane-Jib

Backorder Now, once ordered your item will dispatch before the 16th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The WINDCRANE Mini is a compact and easy-to-install wireless anemometer designed specifically for crawler and mobile cranes. This kit includes accessories for installation to the end of the crane jib.

-Monitor wind data remotely in real-time for instant notifications about dangerous wind speeds.

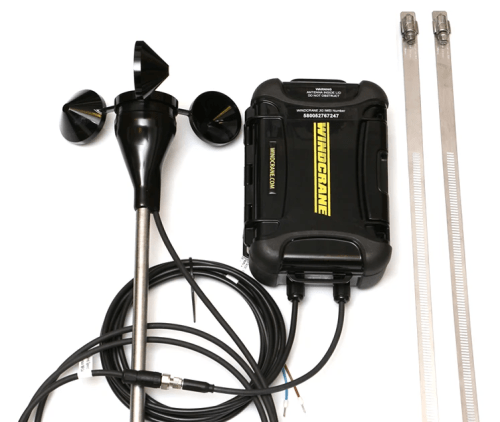

-Includes Wind Crane Mini anemometer, calibration certificate, mounting clamps/ straps for the logger unit to be secured to the end of the crane jib and online data software (valid for 12 months).

Regular price $4,717.00 AUD + GST
$5,188.70 AUD Inc. GST
The WINDCRANE Mini Jib end is designed specifically for crawler cranes and mobile cranes. It is a compact and tough wind monitoring system which is easy to install.
WINDCRANE uses minimal amounts of power and is extremely energy efficient, it connects directly to the 24V power supply at the end of the jib/boom.
Features:
- Wind speed measurement: Measures average and maximum wind speed with turbulence data.
- 24/7 Cloud storage: Daily and weekly back-up with recovery services
- Mobile network communications: 10 minute data transfer to cloud portal using global multi-network roaming SIM.
- Data Sampling: 1 Hz to IEC61400 and BSI EN 13000
- Hosting services: fully managed enterprise servers
- Wind data: Fleet management dashboard and mobile app.
- Wind speed alerts: Unlimited mobile phone wind speed alert notifications

Specifications

Wind Sensor:
- Measurement range: 0.75 to 50 m/s
- Accuracy: 1% nominal, +/- 0.1 m/s (5 to 25 m/s)
- Power: Powered by logger (max 24 V/10 mA)
- Output signal: Pulse frequency output proportional to wind speed. Speed m/s = 0.382 x Hz
- Dimensions: Sensor height: 130 mm, rotor diameter: 190 mm. Mount tube plus sensor height: approx 300 mm
- Materials: Lexan/polycarbonate rotor and ABS body; PVC weather boot; low-friction self lubricating bearings
- Mounting: Integral mounting tube (250 mm length, 12.7 mm dia), 2no galvanised U-bolts and saddles for tubular poles of 25 to 40 mm.
Mini AC Power:
- Data connectivity: Built-in cellular connectivity with internal antenna and worldwide coverage; automatically uploads to WINDCRANE web portal and app
- Sensor options: 1x wind speed anemometer, connects via pre-wired M12 connector pigtail; internal temperature, humidity and barometric pressure and supply voltage sensors
- Power: Pre-wired inline mains power supply for 100 to 240VAC, 10W max consumption, with 3m cable and 230V
- Operating temperature: 30 to 60 C
- Enclosure: Compact weatherproof case (IP67 rated) with loops for mounting straps or lanyards
- Mounting: 2no heavy-duty straps through enclosure loops (110W x 115H mm)
