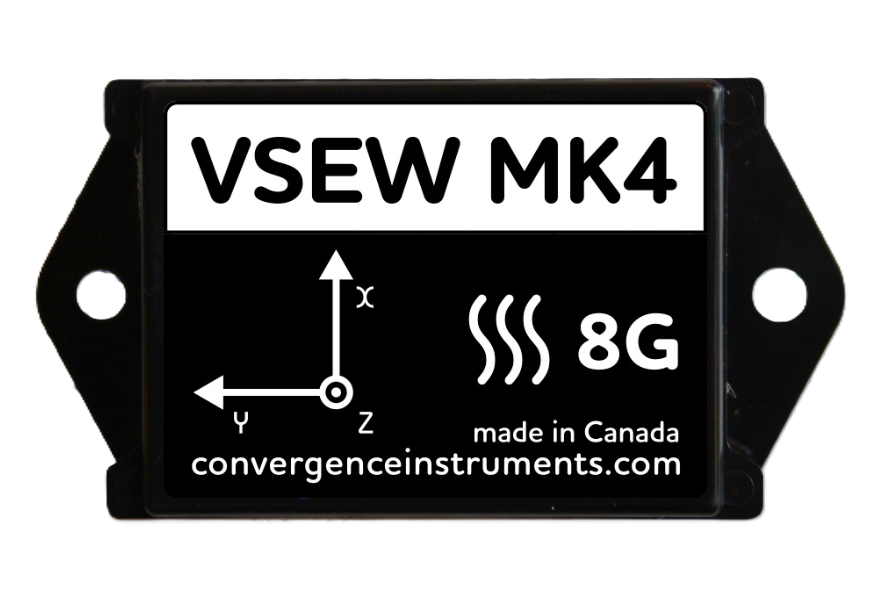

Wireless Vibration Meter Data Logger - VSEW_mk4_8G

The Vibration Meter Data Logger – VSEW_mk4 – 8g is a new model in the VSE series of smart vibration dataloggers. It can record accelerations, vibrations, velocities and inclinations. It includes a 3-axis MEMS accelerometer, an accurate date/time clock and a non-volatile 128 Mb recording memory. Depending on the settings it can record acceleration or velocity signals and/or RMS levels for months. Its very small size allows it to be attached to, or embedded within, the monitored equipment.

Features:

- Measures and records: Raw acceleration or velocity signals, Acceleration or velocity statistics, Vibration or velocity levels and Inclinations
- Virtual COM port interface that allows configuration and measurements to be read by a custom application
- Added filters and settings to support the DIN4150-2 and ISO2631-2 standards directly.
- WiFi™ connection can use any open access point if the specified access point is not working (“W” model only).
- Email alerts can now be sent to multiple addresses (“W” model only).
- All-digital design.
- Integrated oscilloscope function that can show the vibration or velocity signals in real time.
- Allows the observation of recorded data while the recording is ongoing.
- Works standalone, or USB or WiFi connected for setup and data transfer to PC.
- Long life internal rechargeable battery that recharges from USB.
- Self-calibrated using the earth’s gravity as a reference.
- Observes and records 100% of the acceleration signals (no missed samples).
- Editable individual custom ID for easier instrument management.
- Completely sealed weatherproof enclosure.

Specifications:

- Number of axes: 3
- Acceleration Sensor: MEMS Digital 3-axes
- Dynamic Range: +-8 g
- Bandwidth High Limit: Adjustable up to 2 kHz (at 4 kHz Sampling Rate)
- Bandwidth Low Limit: DC (High-Pass Filter Bypass), Adjustable from 10 mHz to Fs/2 (High-Pass Filter On)
- Acceleration Noise X-Y Axes (Typical): Note: Acceleration noise is primarily affected by the sampling rate. The higher the sampling rate, the higher the noise., 110 μg RMS at 125 Hz Sampling Rate, 750 μg RMS at 4 kHz Sampling Rate
- Acceleration Noise Z Axis (Typical): Note: Acceleration noise is primarily affected by the sampling rate. The higher the sampling rate, the higher the noise., 110 μg RMS at 125 Hz Sampling Rate, 750 ug RMS at 4 kHz Sampling Rate
- Velocity Noise X-Y Axes (Typical): Note: Velocity noise is primarily affected by the high-pass cutoff frequency. The lower the cutoff frequency, the higher the noise., 25 μm/s RMS at 1 Hz High-Pass Cutoff, 8 μm/s RMS at 10 Hz High-Pass Cutoff
- Velocity Noise Z Axis (Typical): Note: Velocity noise is primarily affected by the high-pass cutoff frequency. The lower the cutoff frequency, the higher the noise., 30 μm/s RMS at 1 Hz High-Pass Cutoff, 10 um/s RMS at 10 Hz High-Pass Cutoff
- Inclination Angle Noise: Note: Measured using acceleration average, with a log interval of 1s, with the instrument positioned with the Z axis vertical, and X and Y axes horizontal, 1 E − 3 degrees
- Inclination Angle Temperature Stability: Note: Measured using acceleration average, with a log interval of 1s, with the instrument positioned with the Z axis vertical, and X and Y axes horizontal, 0.2° over the temperature range -20 °C to 60 °C
- Connectivity: USB (Virtual Com port interface with open protocol), WiFi (“W” Model only)
- Radio Standard: IEEE 802.11 b/g/n
- Radio Certification: FCC, IC, Japan, Korea, CE
- Measurements: Raw Acceleration (g or m/s2), Raw Velocity (m/s), Min, Max and Avg Acceleration values (g or m/s2), Min, Max and Avg Velocity values (m/s), Inclinations, Min, Max and Avg RMS Vibration level (linear or dB, g or m/s2), Min, Max and Avg RMS Velocity level (linear or dB, m/s)
- Alarm Emails: Acceleration Signal Threshold (X, Y, Z axis), Velocity Signal Threshold (X, Y, Z axis), RMS Acceleration Level Threshold (X, Y, Z axis), RMS Velocity Level Threshold (X, Y, Z axis), Battery
- Duty Rate of Signal Capture: 100% – No Missed Samples
- Spectral Display: 3-Axes 1024-point Power Spectrum – dB or Lin Scale
- Modes of Operation: Idle (Micro-Power), USB-Connected (Active), Recording (Stand-alone), Auto-Rec – Stand-Alone (Idle when no activity / Recording while activity is present)
- Sampling Clock Accuracy: 1%
- Date-Time Clock Accuracy: 30ppm
- Calibration: Self-Calibration using the earth's gravity as a reference
- Battery Type: Integral Li-Poly – USB-Rechargeable
- Recharge Time: 2 h 30 (Typical)
- Battery Autonomy (Full-Charge): Up to one year while in Idle, 16 days to 125 days while recording, depending on settings
- Battery Life: at least 300 Charge/Discharge Cycles
- Temperature Range: -20°C to 60°C (-4°F to 140°F)
- Recording Memory: Non-Volatile Flash Memory
- Recording Memory Capacity: 128 Mb, (Ex: can continuously record single-axis raw signals for 17 min @ 4 kHz Sampling Rate), (Ex: can continuously record 3-axes full-statistics levels at 1s intervals for 5 days), (Ex: can continuously record 3-axes full statistics levels a 1min intervals for 10 months.)
- Recording/Erasure Cycles: Greater than 100 000
- Data Retention: Greater than 20 Years
- Dimensions: 7.62 x 3.94 x 2.06 cm, (3” x 1.55” x 0.81”)
- Weight: 65 g
- Construction: Integrally Potted Weather-Proof ABS Enclosure
- Ingress Protection (IP) Rating: IP57: Protected against dust and temporary immersion in water
