WisBlock Mini Base Board - IC-110035

ORDER ME IN
Product code: IC-110035

Backorder Now, once ordered your item will dispatch before the 18th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

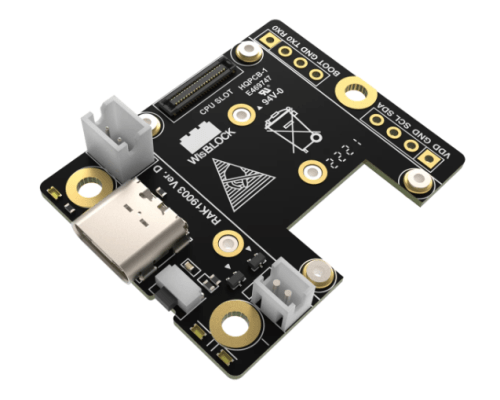

WisBlock Base Board (RAK19003) is the base block for RAK WisBlock. It is the carrier for the WisBlock Core MCU module and two WisBlock modules with 24 pin WisConnector. It enables the engineers and makers to build with low-effort prototypes, test different types of sensors, and develop the application. And because all components and modules of WisBlock are industrial rated the step from development to mass production is no problem.

Read more

$19.20 AUD + GST
 $21.12 AUD Inc. GST
Note:If a non-rechargable battery is used with WisBlock Base Board it has to be unplugged before connecting the USB cable to the port on the board in order to configure the device. Not doing so might damage the battery and cause damage to the battery and board.
WisBlock Base Board (RAK19003) is the base block for RAK WisBlock. It is the carrier for the WisBlock Core MCU module and two WisBlock modules with 24 pin WisConnector. It enables the engineers and makers to build with low-effort prototypes, test different types of sensors, and develop the application. And because all components and modules of WisBlock are industrial rated the step from development to mass production is no problem.
WisBlock Base Board supports as standard 3 different power supplies. Depending on the application either 5V USB, 3.7V LiPo batteries, and 5V solar panels or a combination can be chosen. WisBlock Base Board enables low power consumption applications with the option to switch on and off the power supply for the WisBlock Sensor.
WisBlock Base Board has a size of only 30 x 35mm which lets you create solutions that fit into the smallest housings.
Features:
- Easy Plug'n'Play slots for WisBlock Core MCU, small WisBlock Sensor, WisBlock Extra, small WisBlock Storage and WisBlock Power modules
- Small form factor
- Supports 3 different power supply sources
- Optimized for low power consumption applications
- I2C, UART, GPIO's an analog input accessible with solder contacts
- 2 user-definable LED's
- Reset button
- USB Type C debug port
- 1 slot for WisBlock Core MCU
- 2 slots for modules with 24pin WisConnector
Includes:
- 1pc RAK19003
- 1pc USB type C cable
- 1set screws (kit)
