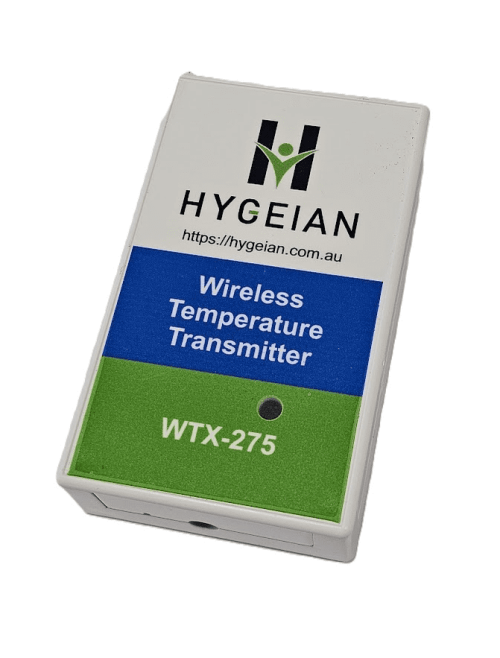

WTX-275 Wireless Temperature Transmitter - IC-WTX275
Backorder Now, once ordered your item will dispatch before the 23rd of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The WTX-275 is a state of the art 915 MHz wireless temperature transmitter designed for a wide range of applications especially in the food industry.
- Mounts directly into fridges and freezers using internal Pt100 sensor plus the option for external Pt100 probes.
- Designed to go directly into fridges and freezers with the option to measure objects adjacent to the measuring point such as pipes or tanks.
- Fully configured and works immediately once connected to a gateway.
Regular price
$299.38 AUD
+ GST
$329.32 AUD Inc. GST
$329.32 AUD Inc. GST
The WTX-275 is a state of the art 915 MHz wireless temperature transmitter designed for a wide range of applications especially in the food industry. It has been designed to go directly into fridges and freezers as well as having an external jack plug to accept Pt100 sensors.
It can be deployed adjacent to the point of measurement where this is required, such as measuring tank temperatures and the temperature of water in pipes.
The WTX-275 purchase price includes the first year of its annual data subscription and a comprehensive warranty. The System is fully configured for you so there is no technical work required to get the system operating. An affordable annual subscription comes into effect on the first anniversary of the purchase.
Features:
- Mounts directly into fridges and freezers using internal Class B (+/- 0.3oC) Pt100 sensor.
- Solid construction, suitable for fridges and freezers.
- The WTX-275 mounts in a WTX-RCP magnetic receptacle.
- Very easy to deploy. No tools required.
- Powered by Lithium AAA batteries suitable for freezer temperatures.
- No interruption to work area when deploying these transmitters.
- External jack-plug to accept externally mounted 3 wire Pt100 sensors.
- Internal dipole antenna.
- Works with all GW-100 gateways.
- Distance in building interior: up to 100m.
- Distance in open line of sight: up to 500m.
- Up to 120 WTX series transmitters can operate with one GW100 series gateway.
Specifications
- Input 1: Internal Pt100 sensor class B +/-0.3oC
- Input 2: 3-way jack socket suitable for Pt100 terminated in 3.5mm jack plug.
- Range of measurement: -50o to +250 C
- Ambient range: -50 to +85 C
- Power: 3 x Lithium AAA cells.
- Antenna: Internal dipole.
- Dimensions Transmitter: 100mm(L) x 60mm (w) x 23mm (H)
- Dimensions Transmitter fitted in receptacle: 110mm(L) x 70mm (w) x 28.5mm (H)
- Continuous Mode: 68ms packet once per minute.
- Immediate Mode: 5 x 68ms packets one second apart.
- Transmit indication: green led flash lasting 68ms.
- Battery low indication: green led flashes continuously
