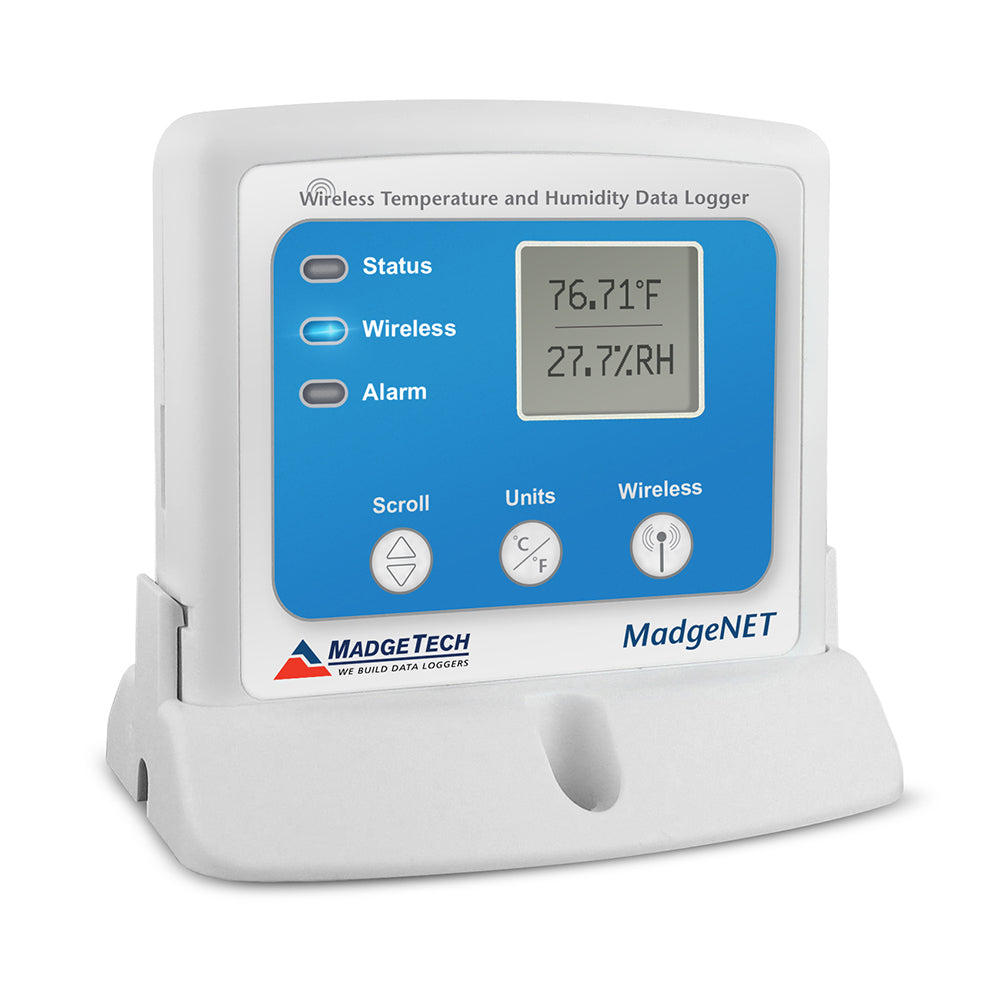

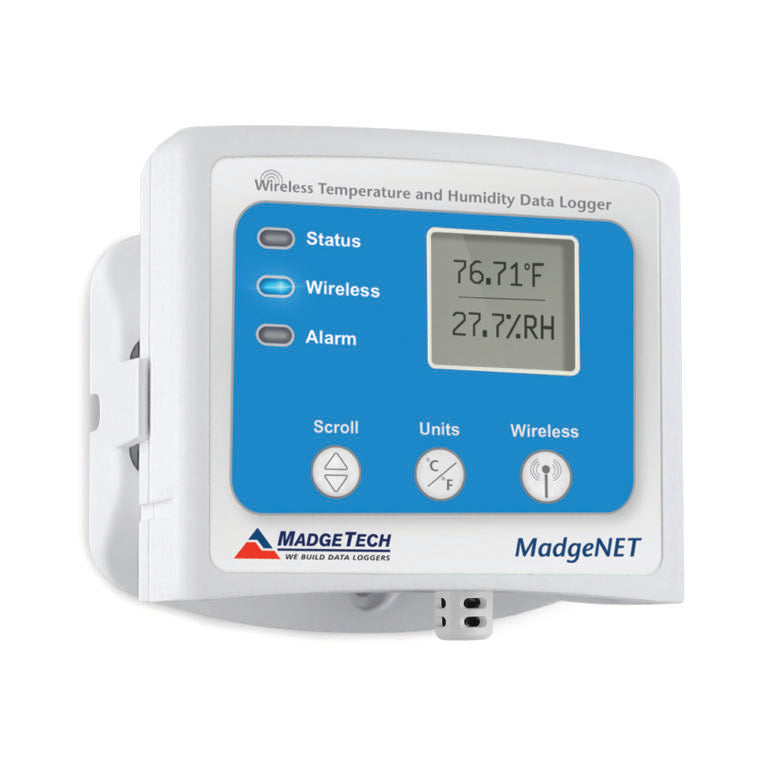

Wireless Humidity And Temperature Data Logger
Product code: IC-RFRHTemp2000A
3+$863.30ex. GST
5+$849.95ex. GST
10+$841.05ex. GST
Two-way wireless temperature and humidity logger.
Built with external humidity and RTD based temperature sensors, the device provides a fast response time for both parameters.
Real-time, wireless data transmitting feature that can be stored to a laptop or computer at periodic intervals.
Large storage memory that can store 16,128 readings per channel.
User settings and functions that includes starting, stopping and data download can be activated wirelessly using the optional wireless transceiver.
Large, LCD display shows current readings for both temperature and humidity, minimum, maximum and average statistics.
Snap-shot feature provides a quick and convenient means to download the current data displayed on the screen.
Features programmable, audible alarms, triggers, and LCD notifications whenever preset temperature and humidity parameters are met that can be sent wireless through email or text.
Designed as a single, wireless data logging system that can be expanded using other Madgetech data loggers.
Comes with exclusive Madgetech data analysis software for additional functions and utility that allows data to be downloaded in spreadsheet or tabular format.
Specifications:
Temperature
Internal Channel Temperature Sensor: Resistance Temperature Detector (RTD)
Internal Channel Temperature Range: -20 C to +60 C (-4 F to +140 F)
Internal Channel Temperature Resolution: 0.01 C (0.018 F)
Internal Channel Temperature Calibrated Accuracy: 0.5 C (5 C to 55 C)
Humidity
Humidity Sensor: Relative Humidity Sensor
Humidity Range: 0 %RH to 95 %RH
Humidity Resolution: 0.1 %RH
Humidity Calibrated Accuracy: 3.0 %RH, 2.0 %RH typical @ 25 C/(10 %RH to 90 %RH; 5 C to 55 C)
Wireless
RF Carrier Frequency: 2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication.
RF Baud Rate: 250,000
Output Power: +0 dBm typical
Receiver Sensitivity: -95 dBm typical
Typical outdoors Line of sight: Up to 2000 ft
Typical Indoors line of sight: Up to 500 ft
General
Memory: 16,128 readings per channel
Reading Rate: 1 reading every second up to 1 reading every 24 hours
Baud Rate: 250,000
Operating Environment-20 C to +60 C (-4 F to +140 F) 0 %RH to 95 %RH non-condensing
LED Indicators: Green, Blue & Red
Battery Life: 3 years typical at a 1 minute reading rate
Material: ABS plastic
Dimensions: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only
IP Rating: IP22
Required Interface Package: RFC1000
Approvals: US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)
File | Type | Size | Created At |
---|---|---|---|
rfco2rh..s-1.pdf | 1.02 MB | 12/8/2022, 2:18 PM | |
RFCO2RH..pug.pdf | 267.04 KB | 12/8/2022, 2:18 PM |
